Glass flood wall with steel posts on a concrete base beside a car park and suspension bridge

Smart and resilient

Our flood glazing system is a sealed glass panel fixed inside a unique aluminium frame, built to withstand the forces of nature. Laminated glass made to withstand impact combined with highly corrosion resistant framing, our glazing systems will hold the force of water at bay, without a drop getting through.



Designed to your needs

Each flood glazing barrier we build is designed precisely. Specific loadings and requirements are catered for and incorporated using independent design calculations. Options available include fully hidden fixings, branded glass and can be made to be either semi-permanently or permanently fixed.



Designed and Installed by experts

The complete solution from concept through to installation, our engineers create, build and then install a glazing  system using an innovative glass-suction robot. We look after everything.

Technical line drawing of an MM Engineering glass flood wall



Technical spec

  • Fixings designed and proved using Hilti PROFIS Anchors Software
  • All anchors of dissimilar material isolated to prevent bimetallic corrosion
  • Glass panels designed to ‘floating’ between posts to allow movement with construction expansion joint
  • Laminated layers in line with BS EN ISO 12543 specified according to desired impact resistance
  • Material grade 6063 aluminium
  • Permanently-fixed passive protection
  • Welding standards in line with BS EN 1090
  • Design codes:
  • BS EN 1990 Eurocode 0: Basis of Structural Design
  • BS EN 1999-1-1: Design of Aluminium Structures

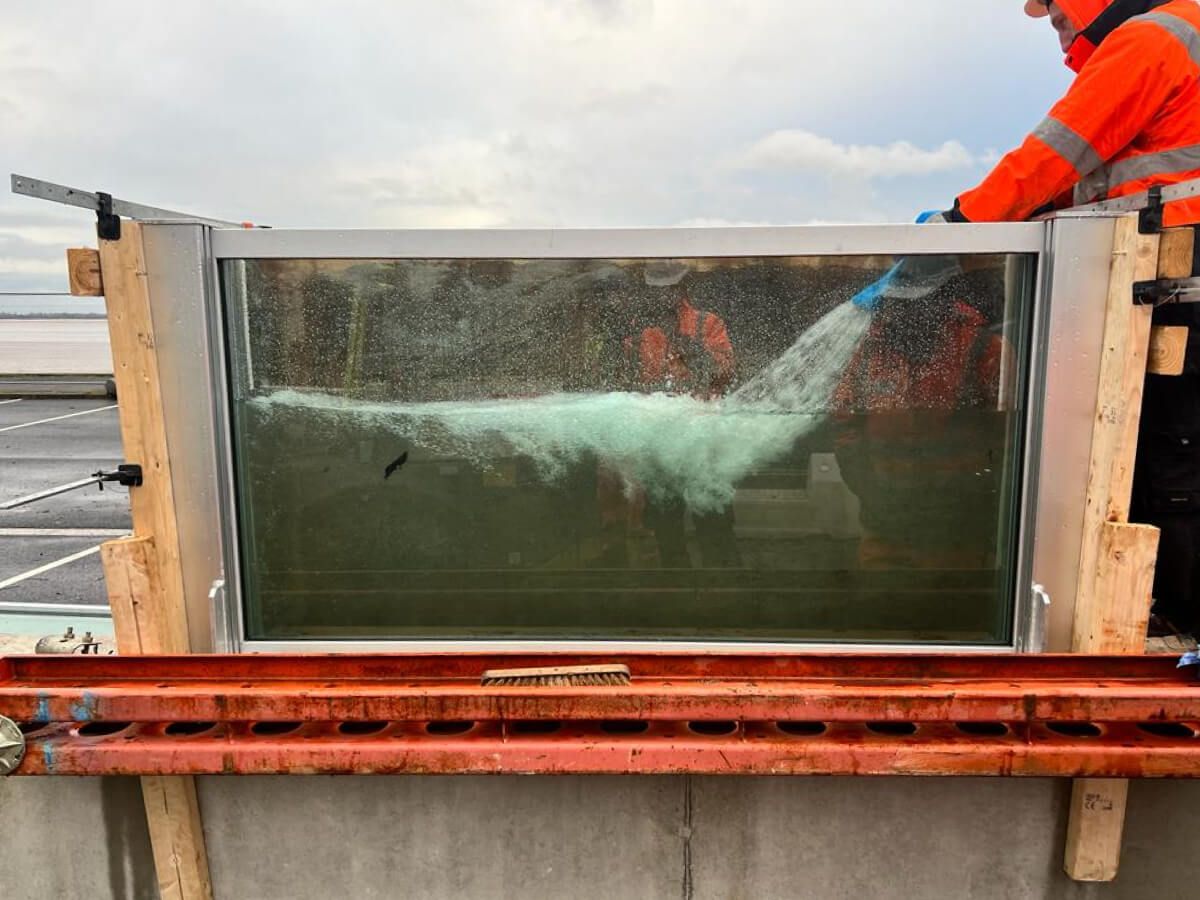

Flood glass panel being sprayed with water during a test, with a worker leaning over the frame
Long glass flood wall on a concrete base beside a car park, with a suspension bridge behind

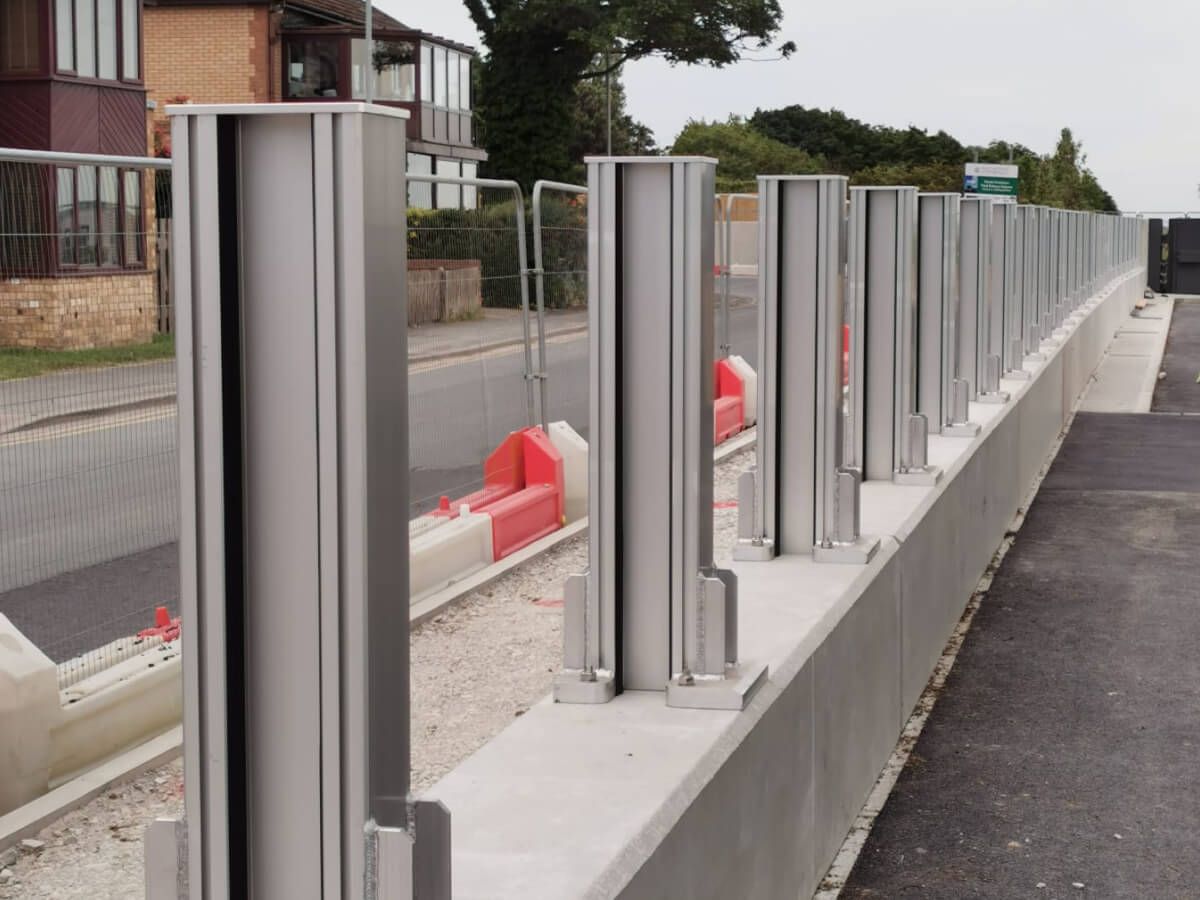

Row of aluminium flood wall posts on a concrete upstand beside a road and pavement

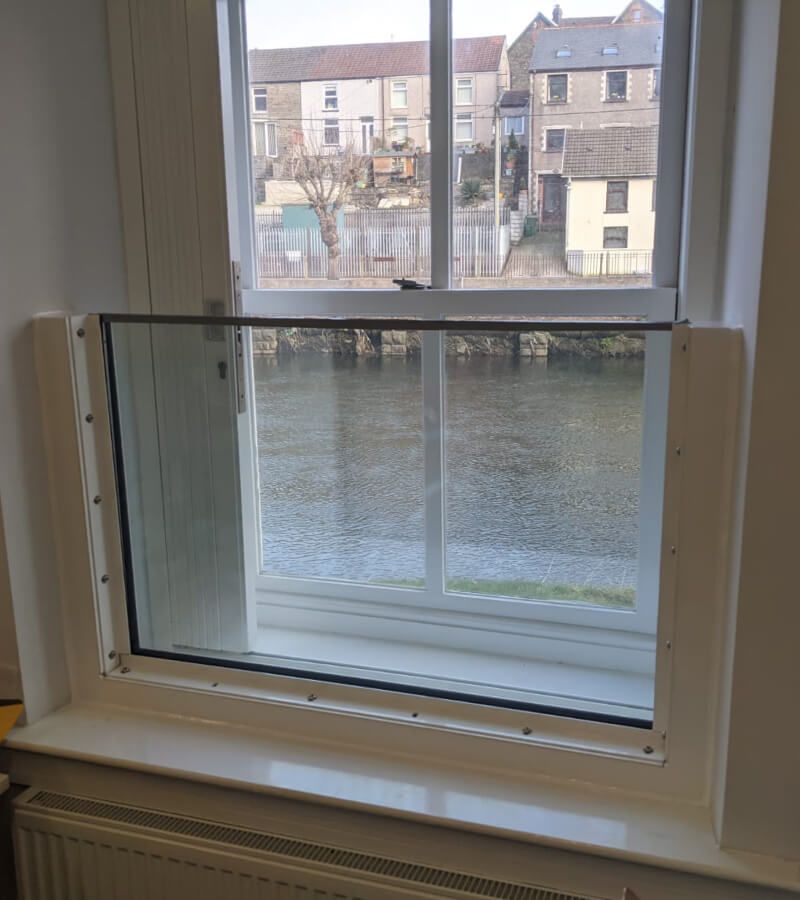

Flood defence glazing fitted in the lower half of a white sash window overlooking a river

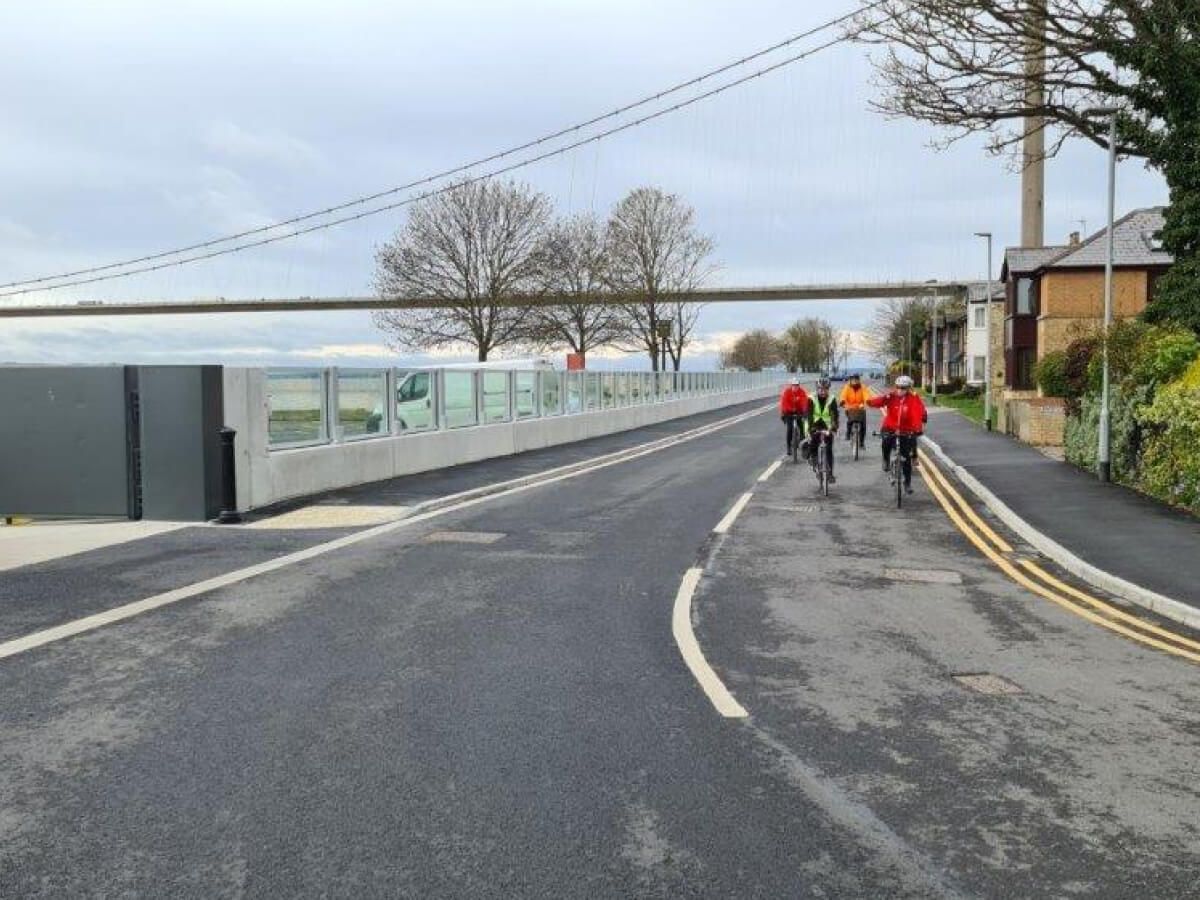

Glass flood wall on a concrete base along a road, with cyclists approaching and a bridge behind

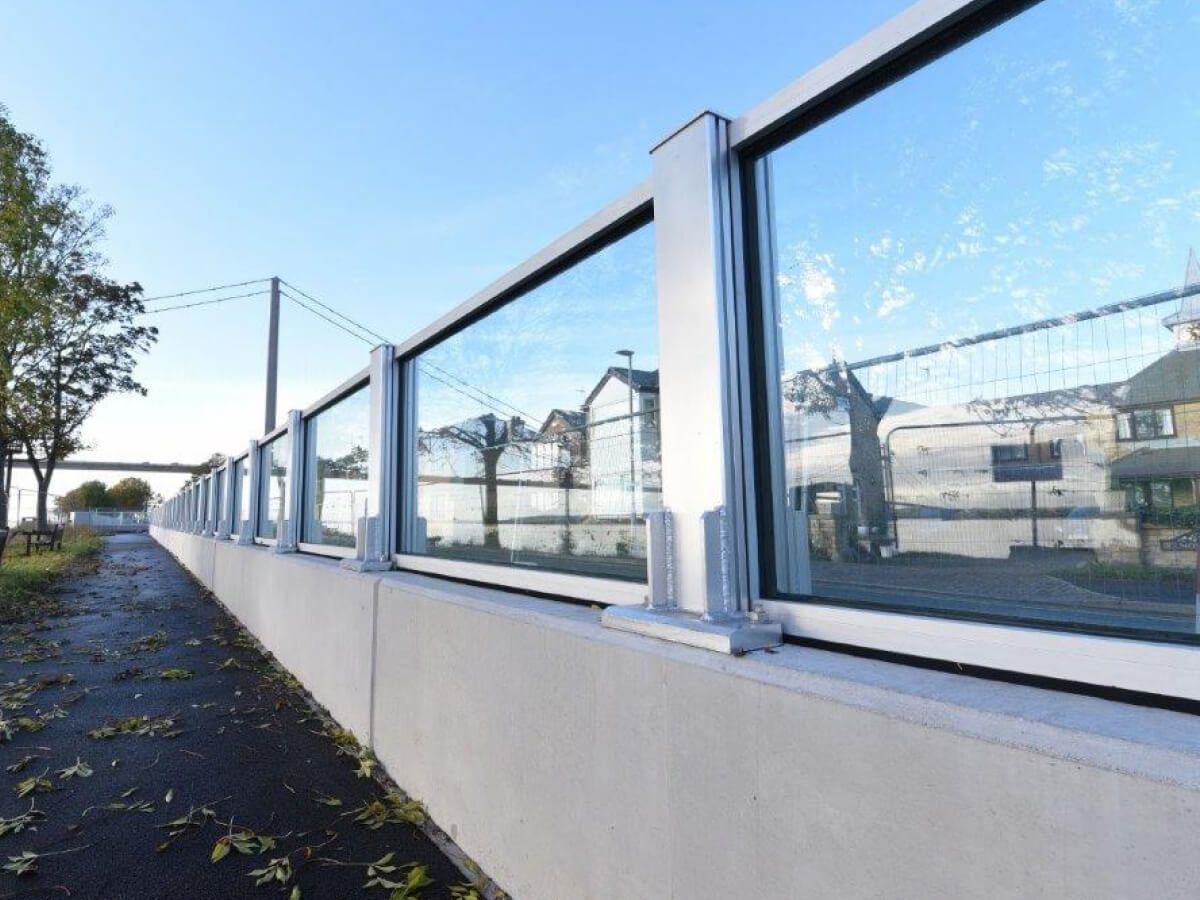

Glass flood wall panels set between aluminium posts on a concrete wall under a blue sky
Two MM Engineering colleagues reviewing a flood door design at office computer screens

DESIGN AND CONSULTATION

Defending against a flood requires a feat of engineering. Many say they can do it. Few actually can. We make bold claims about our products and back them up with a testing regime unrivalled on the market. Our products work. And we prove it. Every product we make is unique. Designed around your needs and backed by independent design calculations. We don’t design to sell. We design to defend.

Find out more about Flood Risk Design and Consultation
