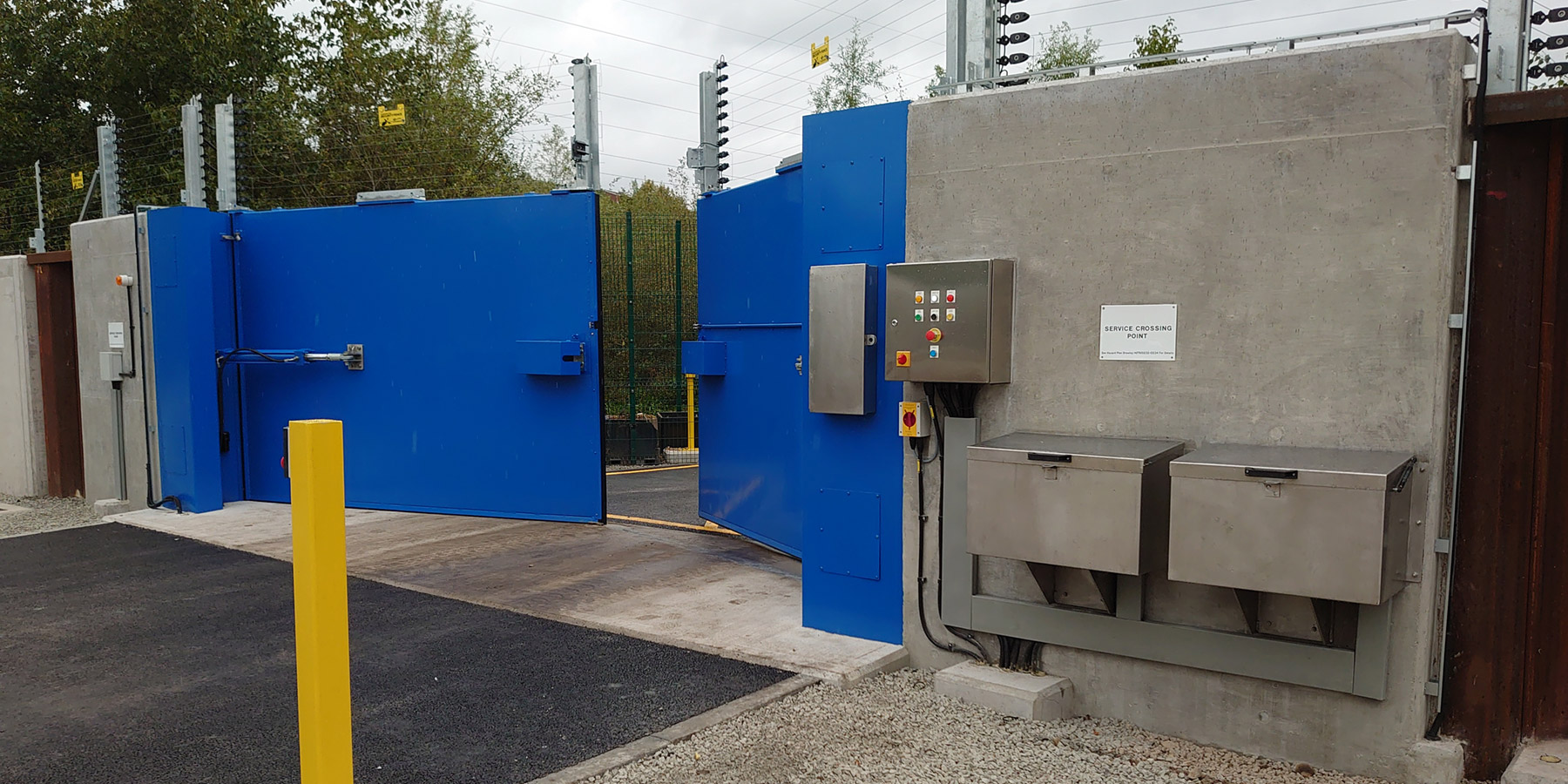

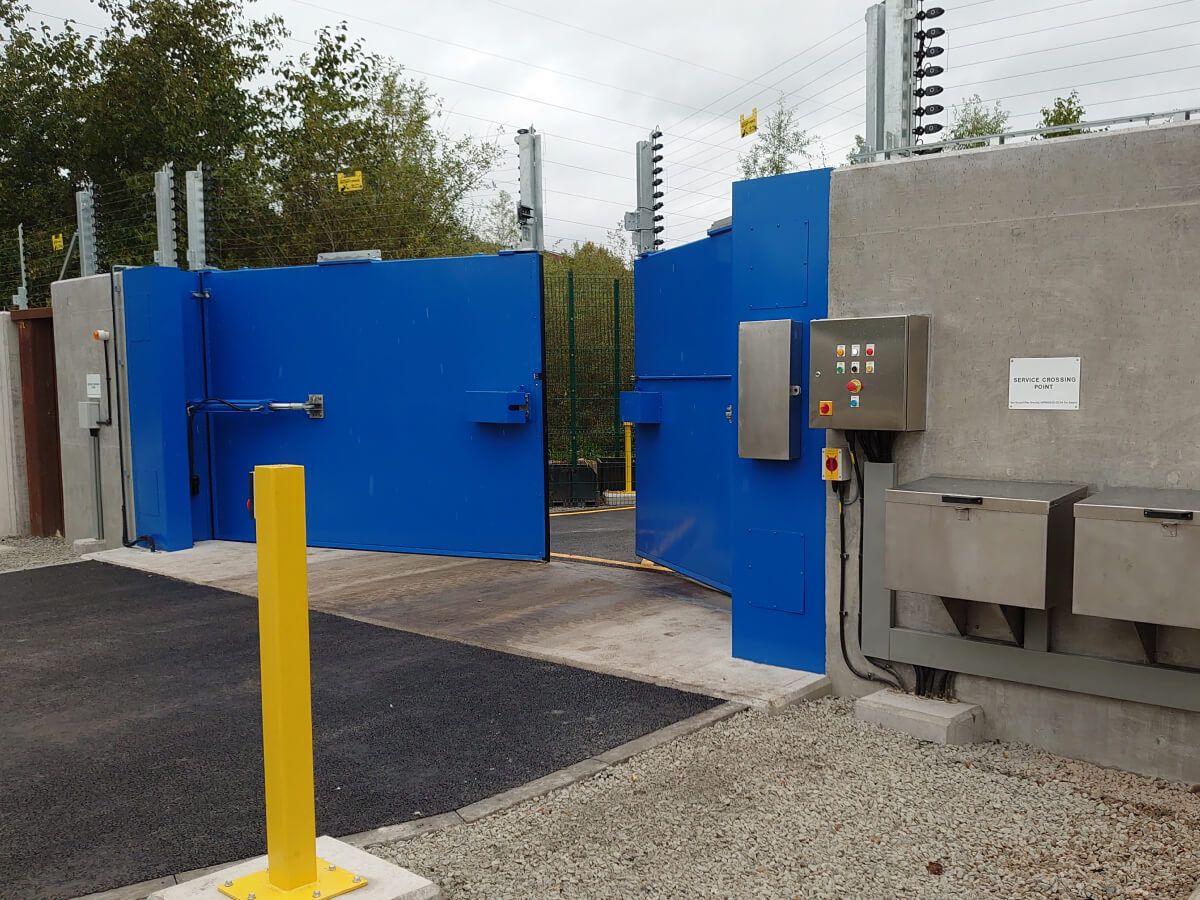

HMRC Shipley
MMEngineering were commissioned to create, advise and install flood defence products for HMRC Shipley at their riverside location.
Fast Deployment
Electronically operated, allowing for just one individual to deploy flood defence almost instantly. Our hydraulic flood gates deploy at just the touch of a button. PAC accessed for complete security, ensuring your flood defences system is protected from unauthorised use.
Configured to your needs
Our hydraulic flood gates are designed and manufactured specifically for you. Created in-house, we can configure your flood defences to the size and requirements of your site, to ensure the best possible flood defences are achieved.
Built to last
We believe in simplicity. All of our floodgates are designed with as few moving parts as possible, meaning they need very little maintenance. They are ready to defend when called upon.
TECHNICAL SPEC
-
Made from mild steel or stainless steel (304 or 316L)
-
Welding standards in line with BS EN 1090
- Design codes:
- BS EN 1990 Eurocode 0: Basis of Structural Design
- BS EN 1993 – Eurocode 3: Design of Steel structures
- Design variants include vehicular, bi-fold and pedestrian access and can be designed as cast-in or faced-fixed
- Vehicle-access using 28mm 200x10mm 304 stainless steel threshold at an 8 degree angle
- Pivotability to 190 degrees
- Coated using 2 pack epoxy paint system for high resistance to corrosive atmospheres
- PAC accessible.
Product resources
DESIGN AND CONSULTATION
Defending against a flood requires a feat of engineering. Many say they can do it. Few actually can. We make bold claims about our products and back them up with a testing regime unrivalled on the market. Our products work. And we prove it. Every product we make is unique. Designed around your needs and backed by independent design calculations. We don’t design to sell. We design to defend.
