HMRC Shipley

MM Engineering were commissioned to create, advise and install flood defence products for HMRC Shipley at their riverside location.

HMRC Shipley

MARKET

UK Public Sector

SERVICES

Flood Doors Flood Gates

CUSTOMER

HM Revenue & Customs

Boxing day 2015 saw a deluge of floods hit the north east of England.

One of the most prominent rivers to burst its banks was the River Aire in West Yorkshire, which caused severe flooding in Leeds and the surrounding area.  Amongst the places worst hit was the historic market town of Shipley, home to a large office of the UK government’s tax collection authority, Her Majesty’s Revenue and Customs (HMRC), with over 900 civil servants employed at the location.  The inundation caused the site to temporarily close, resulting in delays to various tax-related services across the country.

Our guidance at an early stage can help shape a flood defence project, ensuring a fit-for-purpose and value-engineered solution.

Once the flood remedial works were completed, a plan was set in motion to reduce the future flood risk of the site. The flood defence design concept utilised a reinforced concrete flood wall around multiple locations of the site with a selection of gates and doors installed to provide access to the site.

MM Engineering were commissioned initially only to provide the specialist flood defence products. However midway through the project, we were asked to lend our expertise to improve the structural design of the flood wall.

Engineers welding and rigging a dark grey flood barrier installed inside a brick building

The initial flood wall design had failed to take a number of critical structural factors into consideration.  As a result it would have been unable to withstand the weight of flood water during a flood event.  Our structural engineer calculated the various loading factors the wall was required to withstand, including the hydrostatic pressure caused by a flood, point loadings from simulated debris impacts and bending moments from flood gate open and close cycles.  Using these calculations we redesigned the wall to withstand the predicted forces and provide an impenetrable defence against the future flood events.

A civil contractor constructed the flood wall and MM Engineering installed the flood defence products over a multi-visit installation programme. The site is now fully operational and protected from flooding.

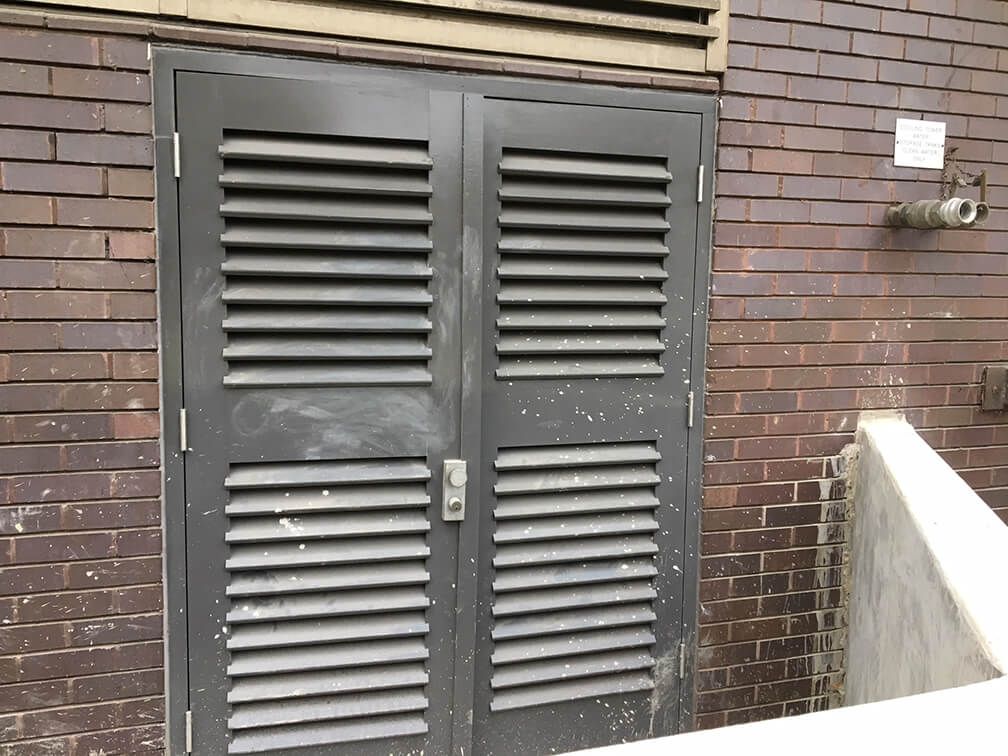

Louvred double doors in a brick wall beside a concrete flood wall

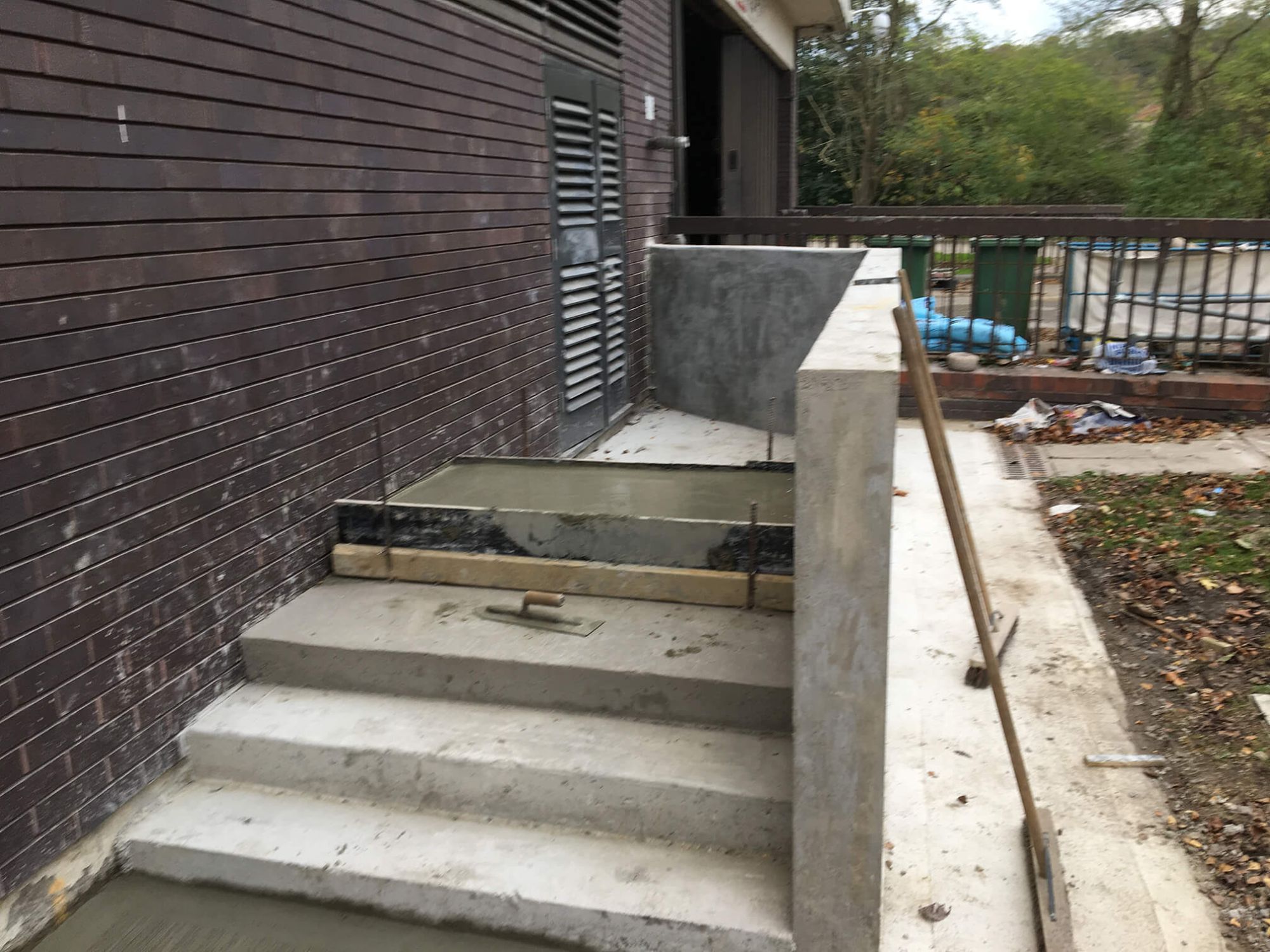

Concrete steps and flood wall under construction beside a brick building with louvred doors

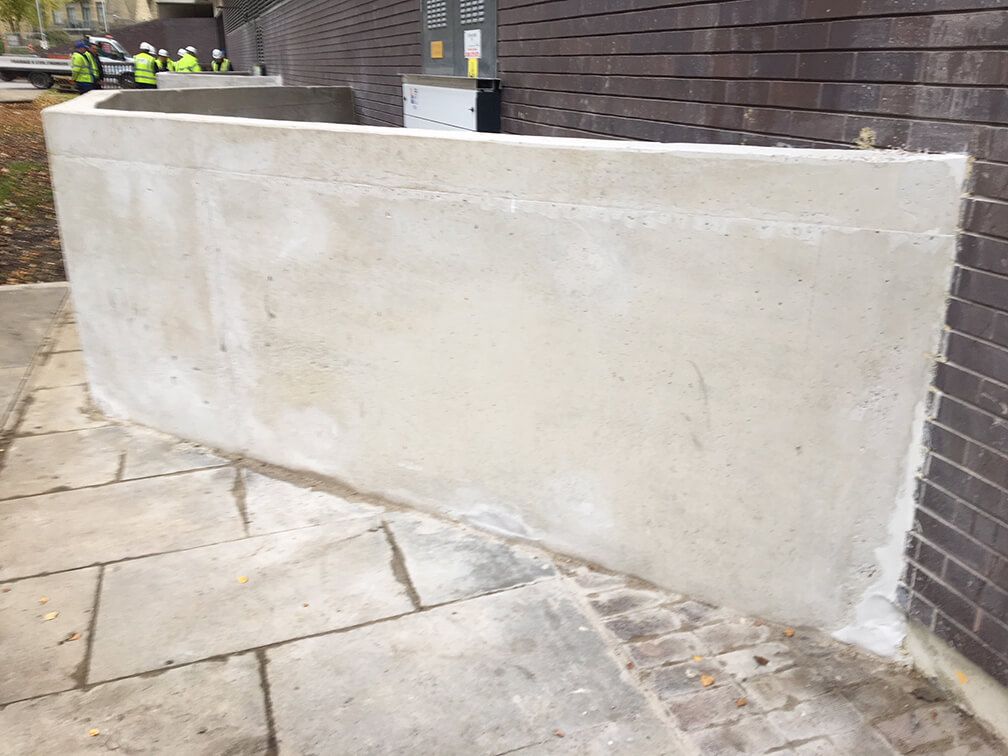

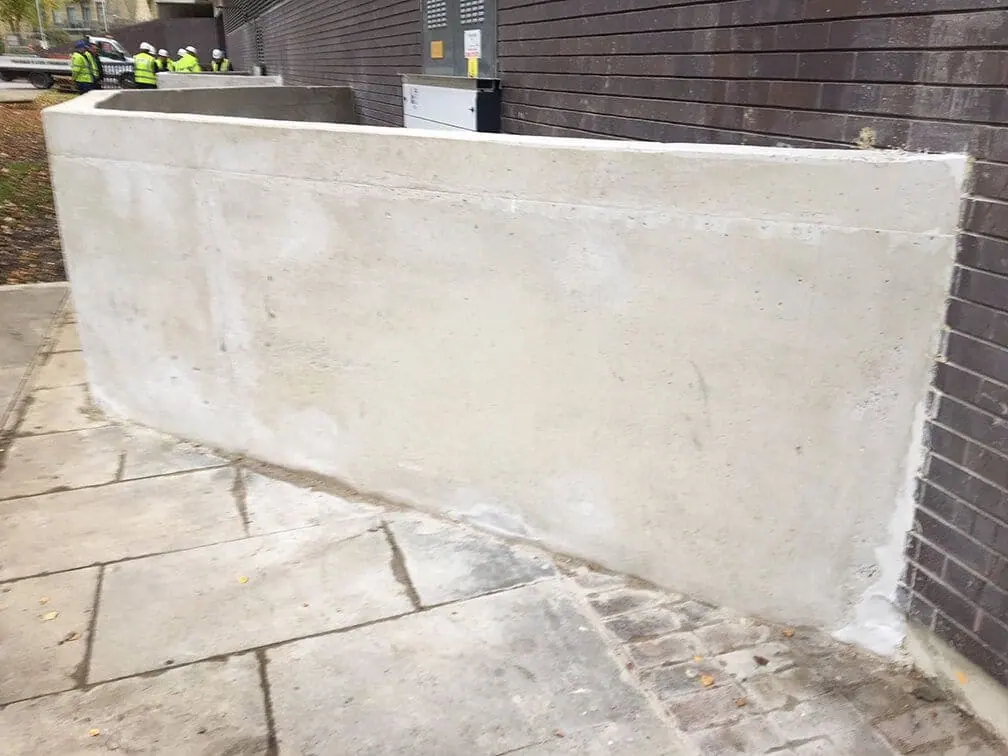

Finished curved concrete flood wall along a brick building with workers in high-visibility vests

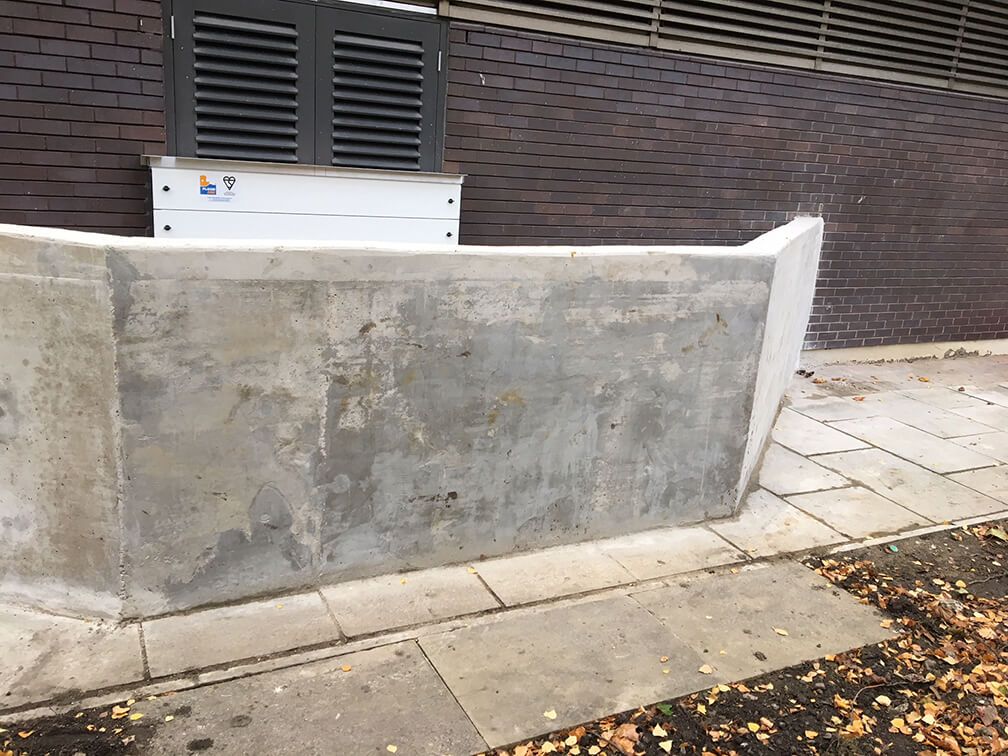

Concrete flood wall in front of louvred doors with a white flood barrier panel above

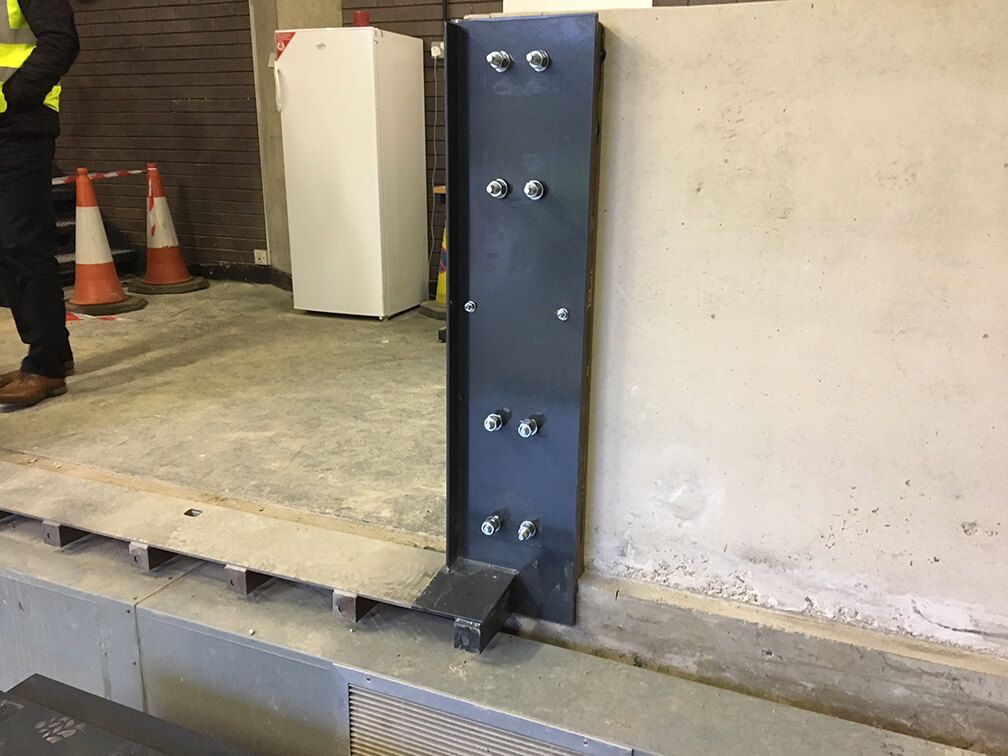

Dark steel flood barrier post bolted to a concrete wall at an internal doorway
Angled concrete flood wall protecting a brick-walled doorway, with red safety barriers

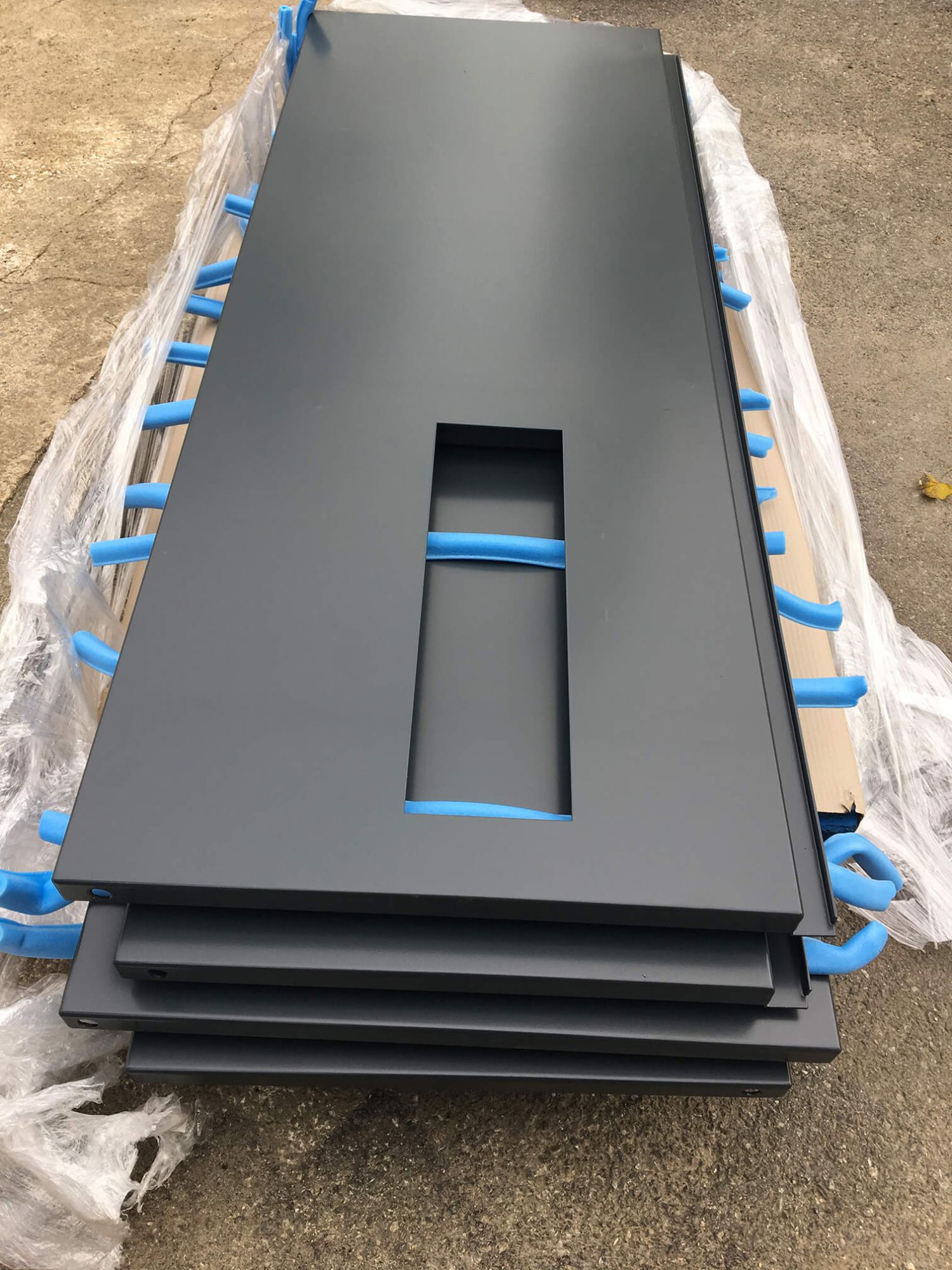

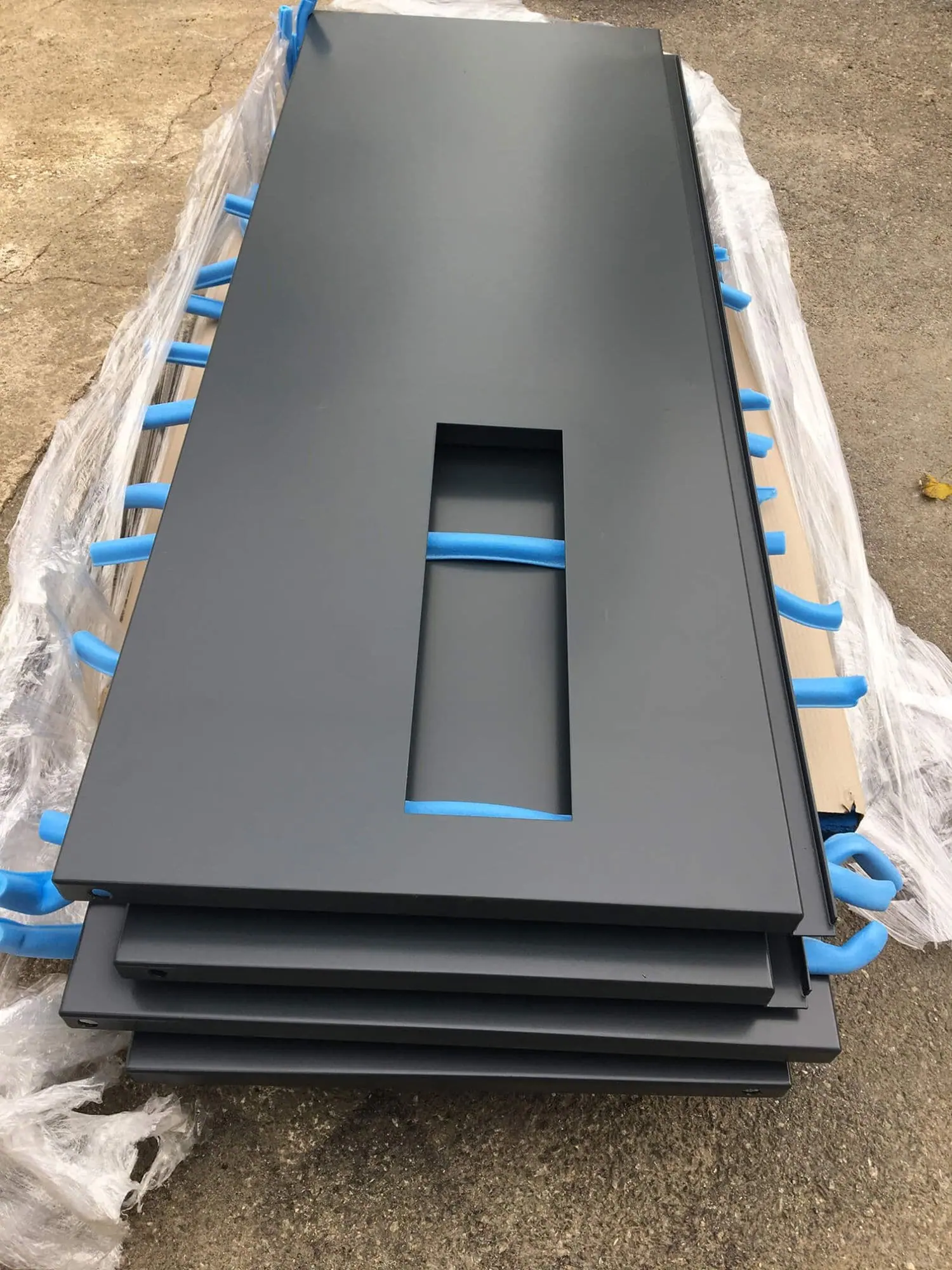

Stack of grey powder-coated flood door panels wrapped in plastic and blue foam

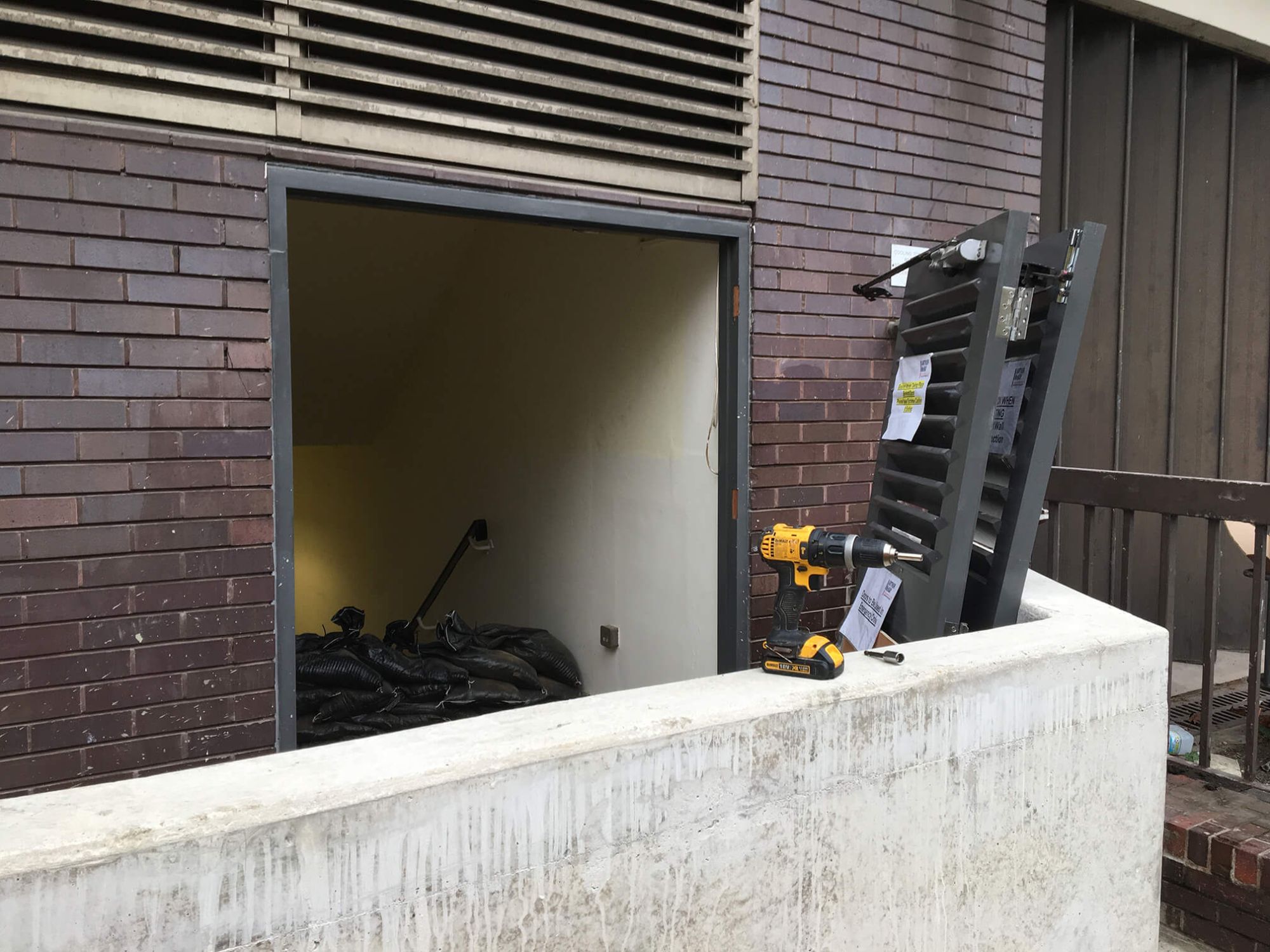

Open louvred flood door fitted in a brick wall with sandbags and a drill

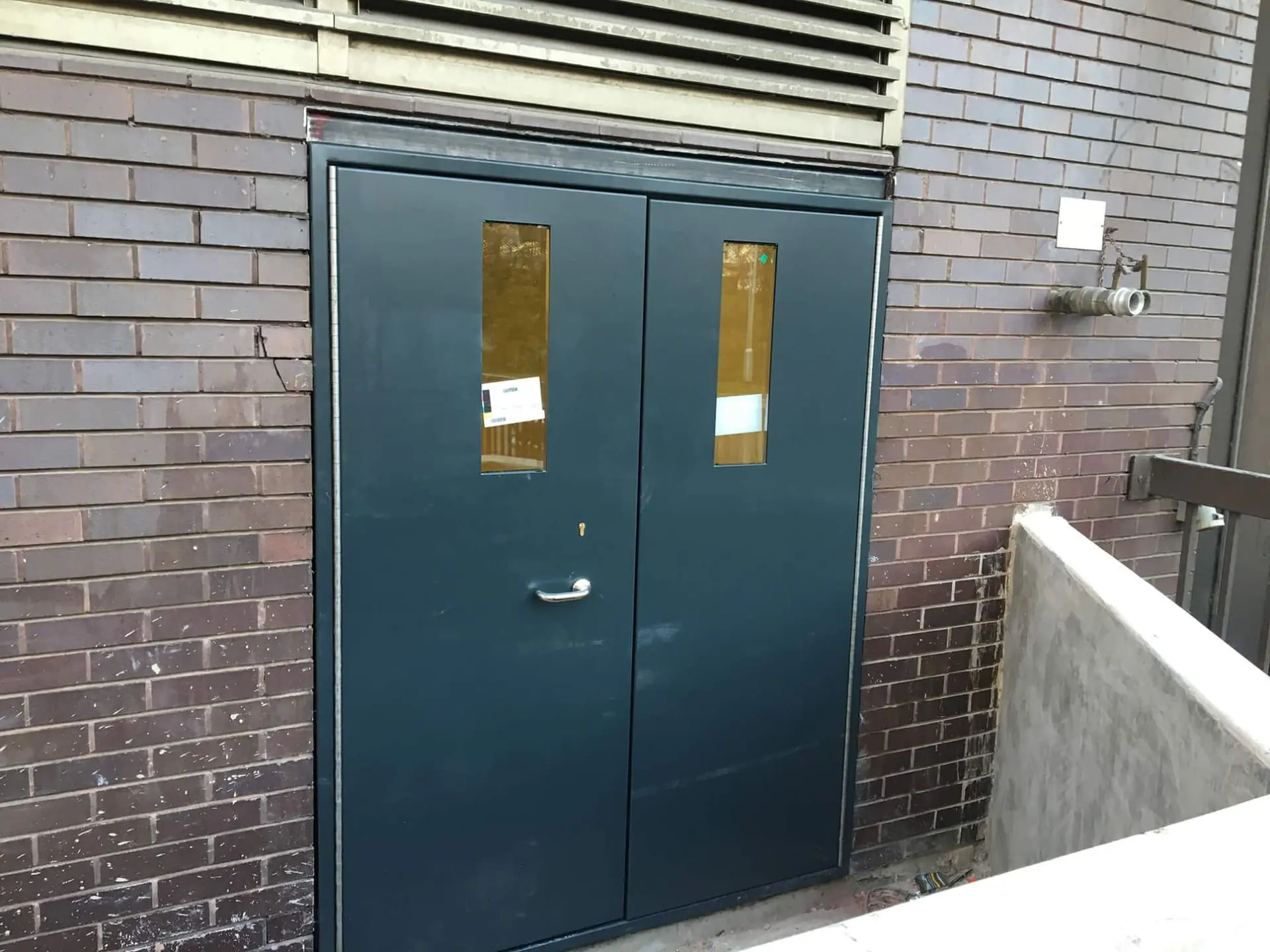

Dark blue-grey double flood doors with vision panels set into a brick wall

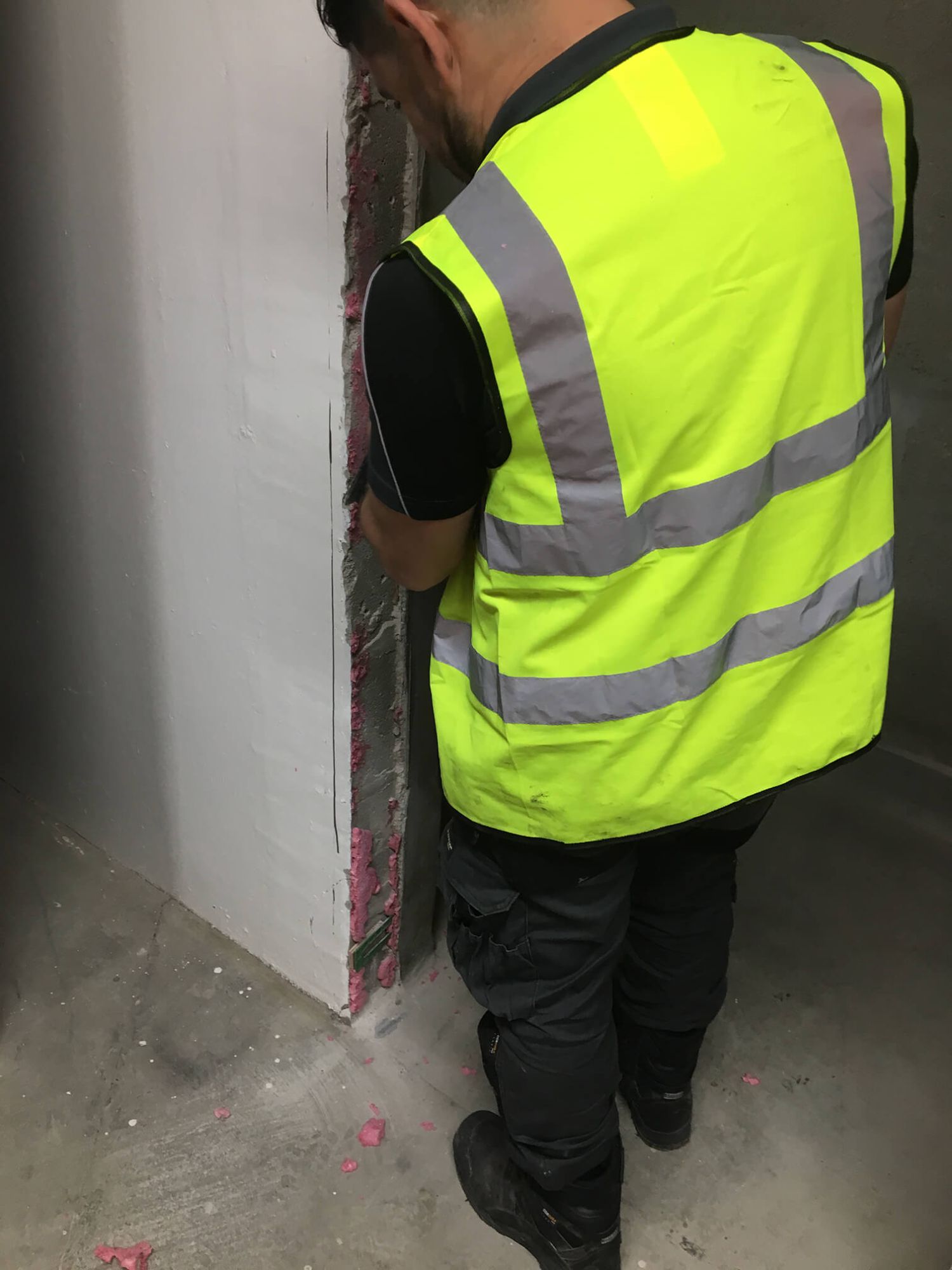

Installer in hi-vis vest checking a pink-foam sealed door opening in a concrete wall

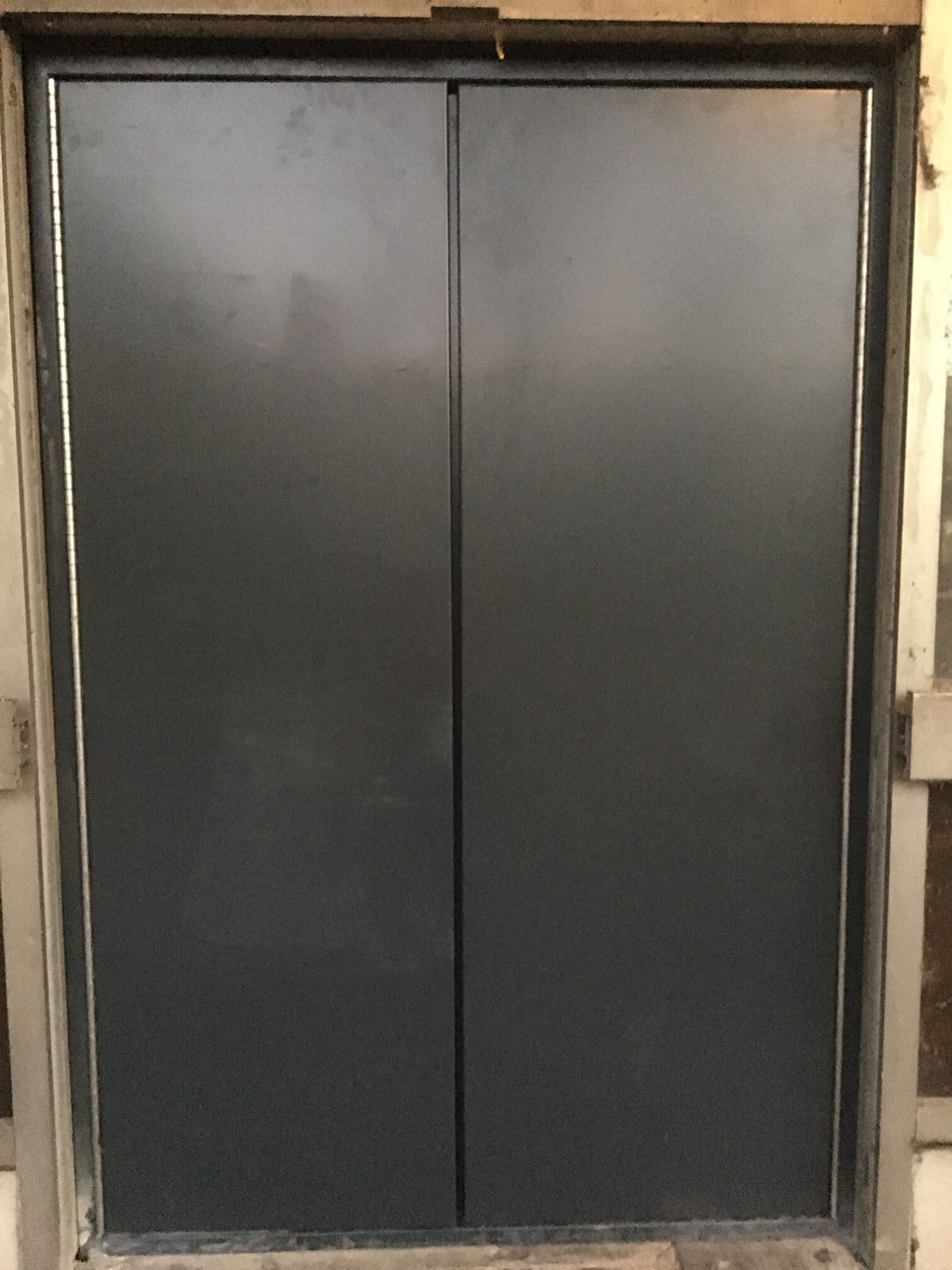

Pair of dark grey steel blast doors fitted flush in a frame

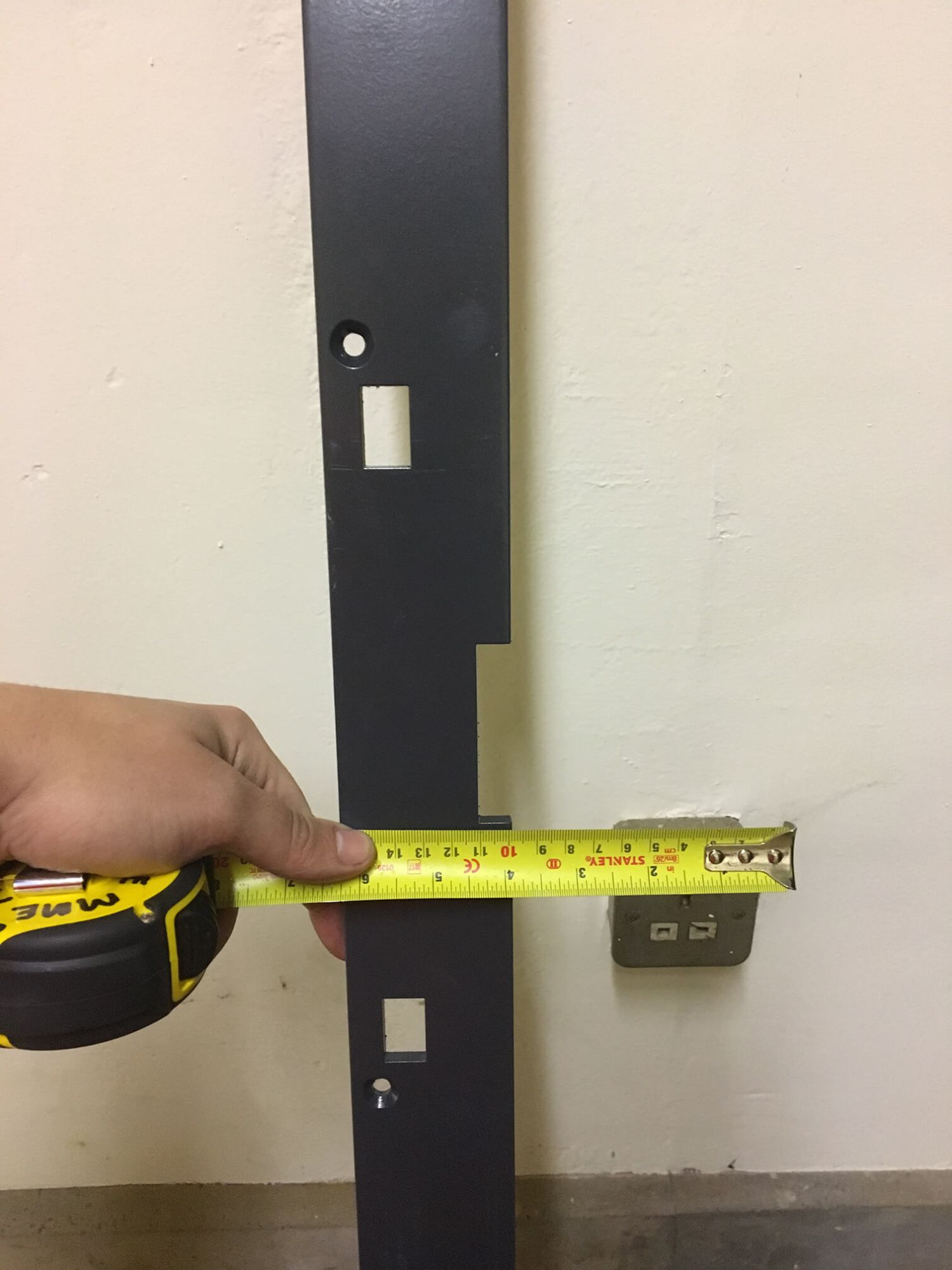

Dark grey steel door leaf plate with cut-outs being measured with a tape

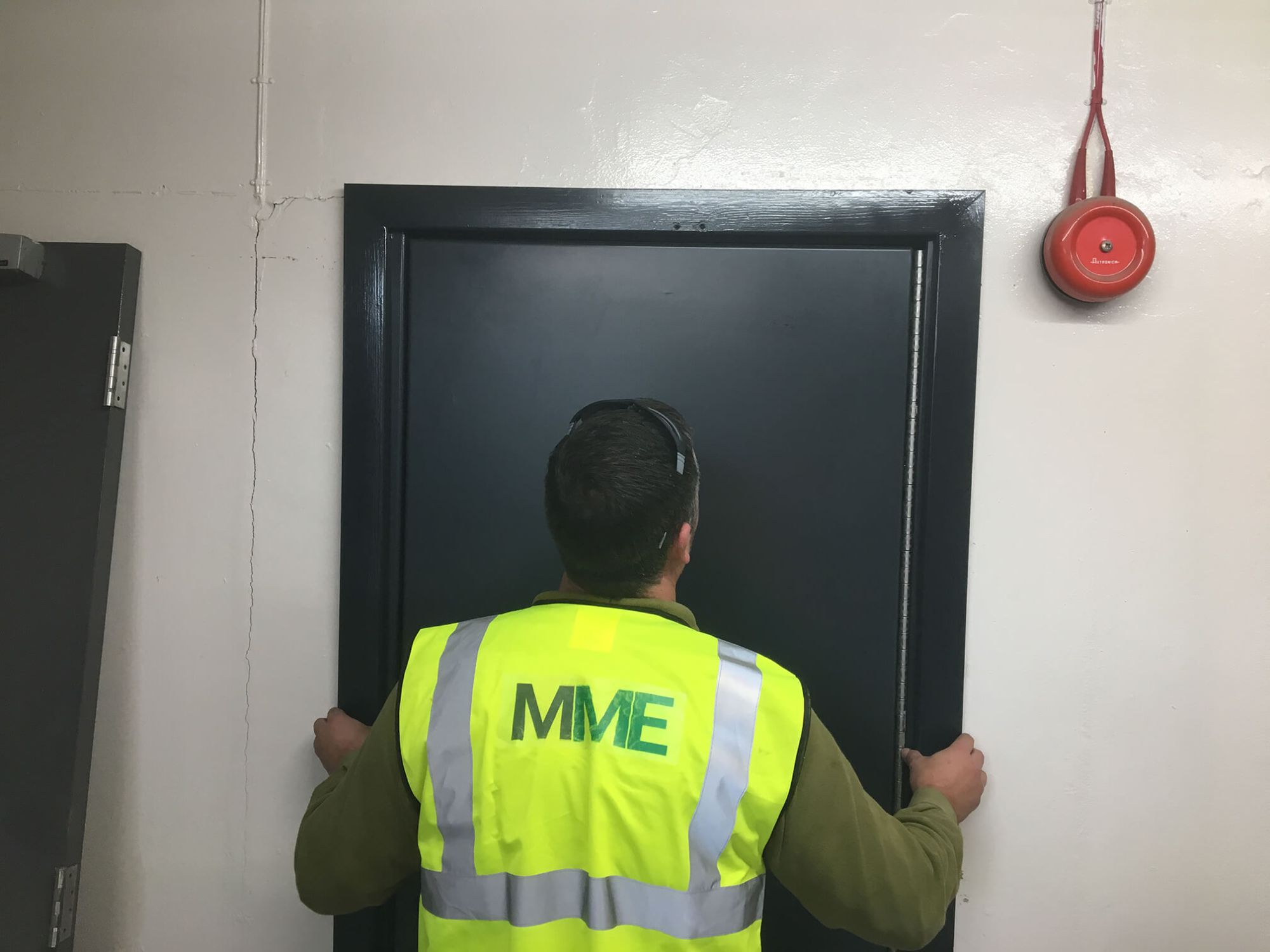

Installer in hi-vis vest holding a newly fitted dark grey door in its frame

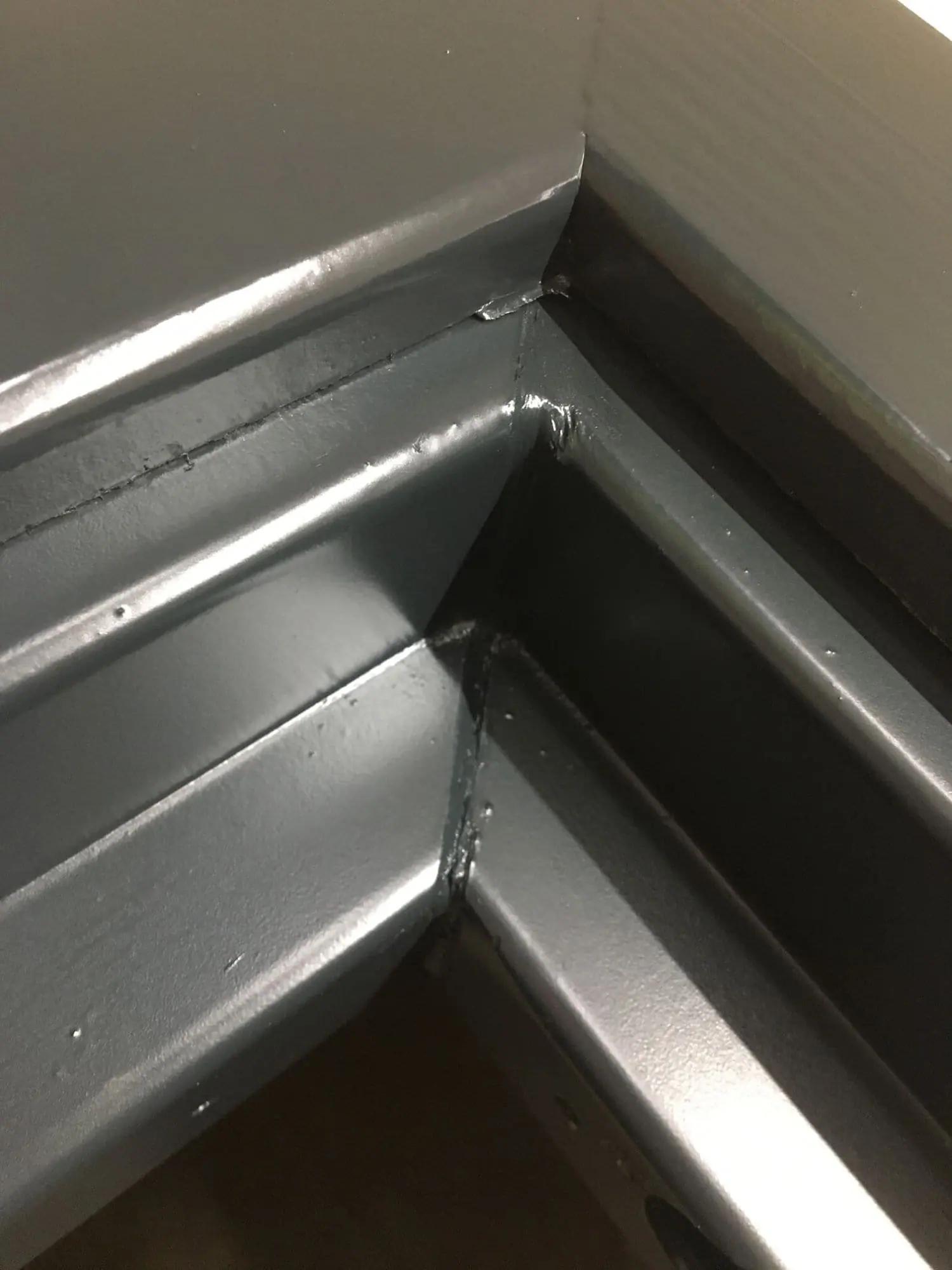

Close view of a welded corner and frame section on a grey painted steel flood door

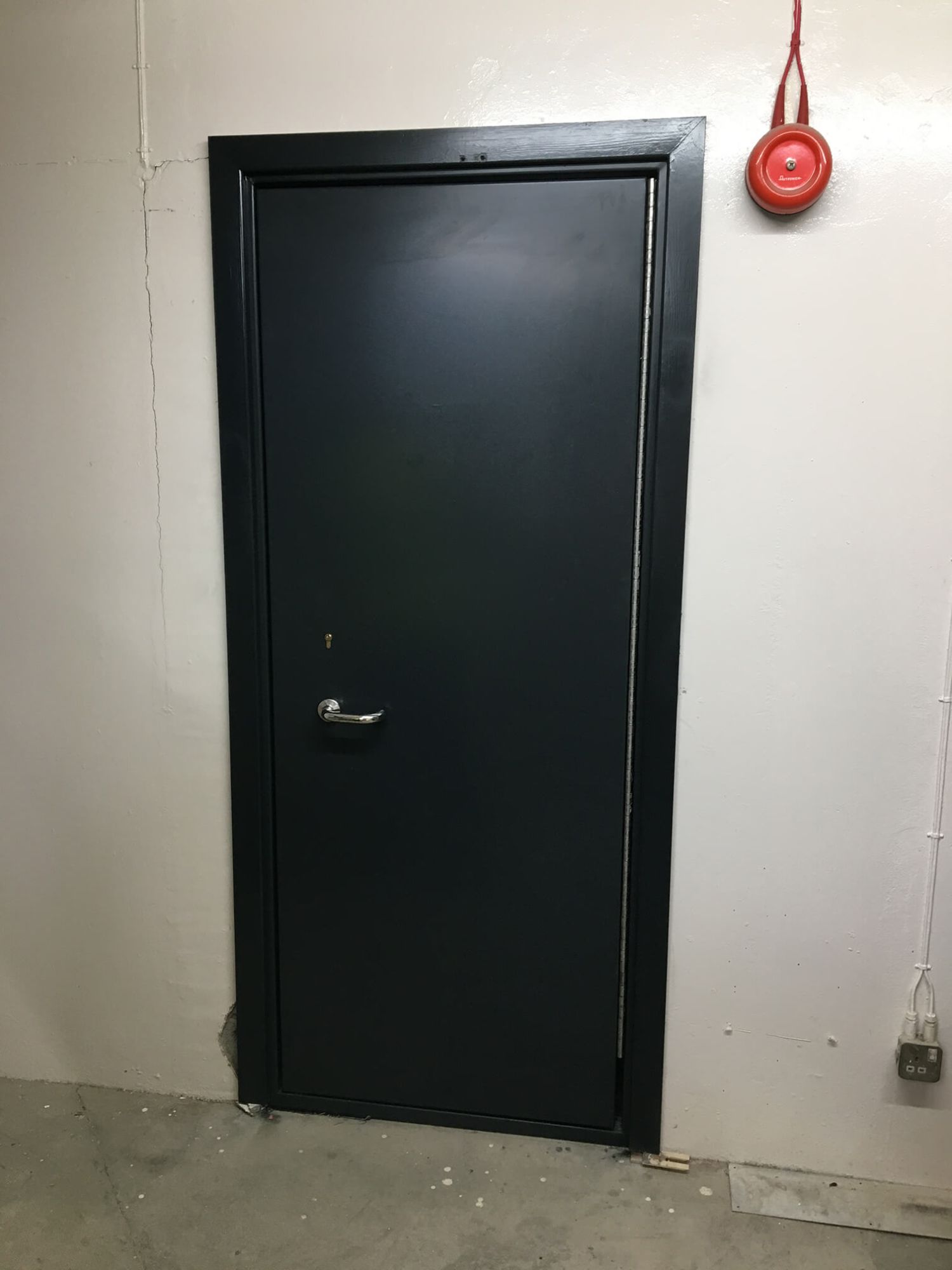

Single dark grey steel door with chrome lever handle and keyhole fitted in a plant room

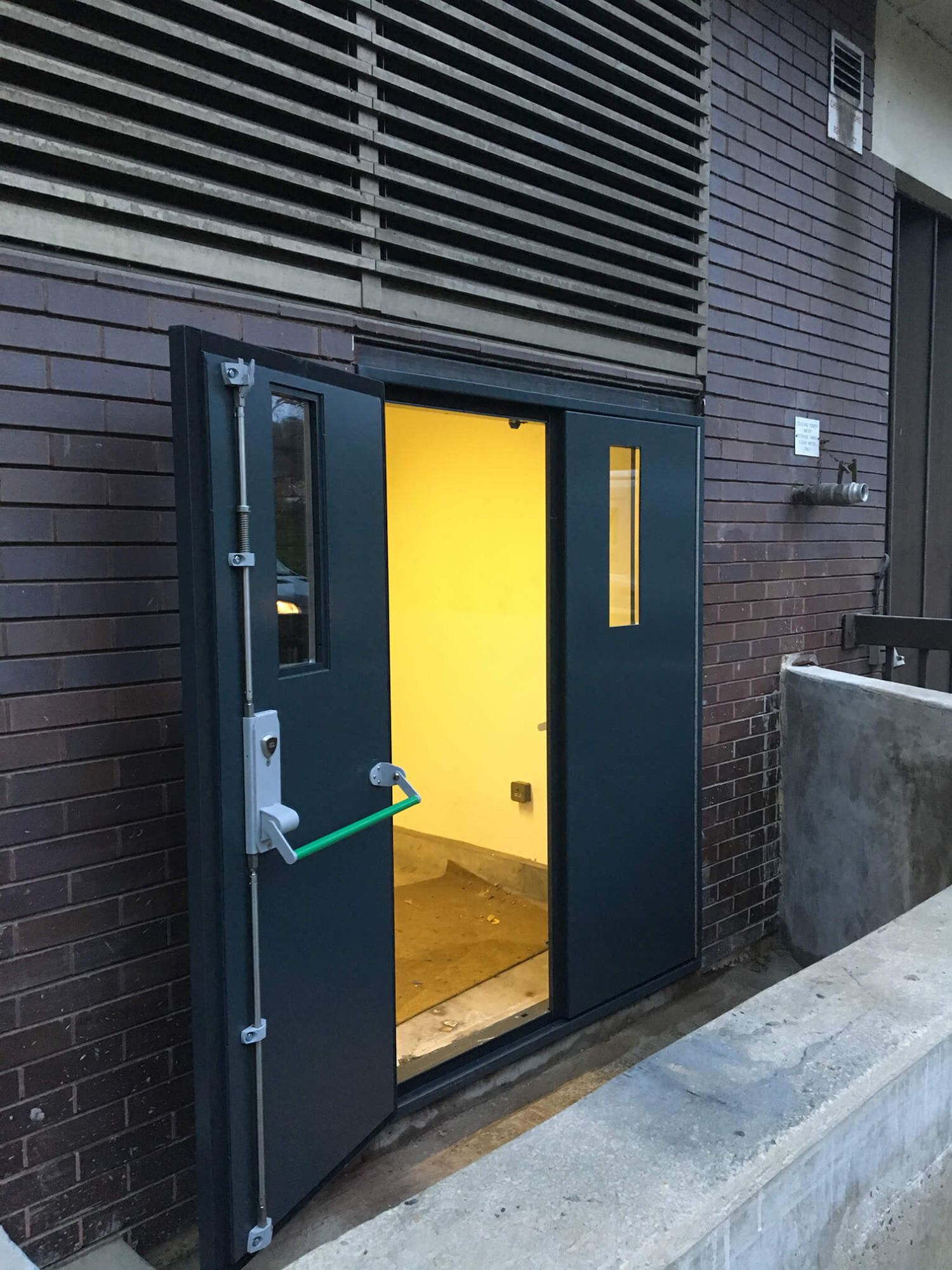

Open grey double doors with vision panels and green push bar in a brick wall

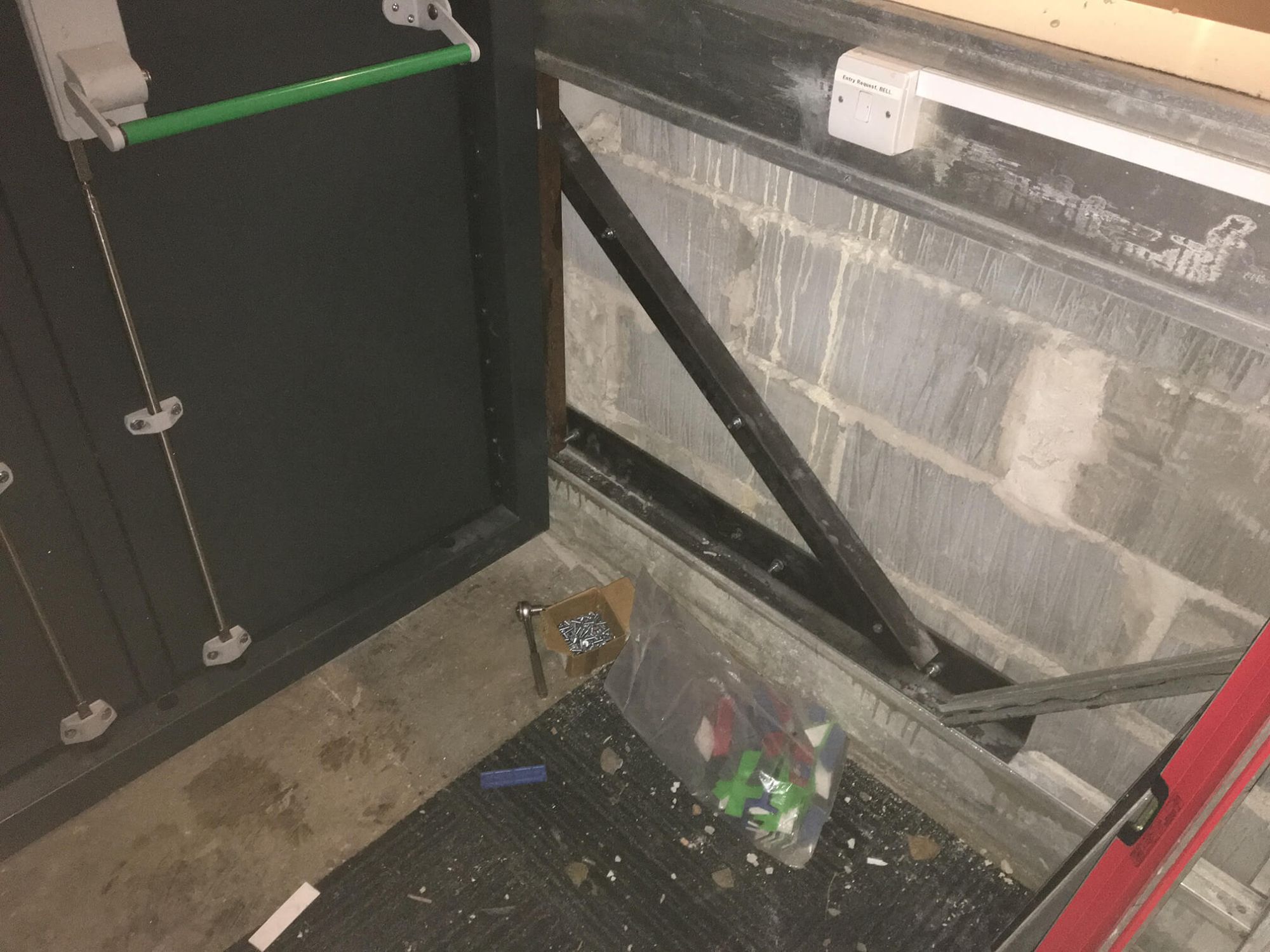

Rear of an open door showing steel bracing, screws and tools beside a block wall

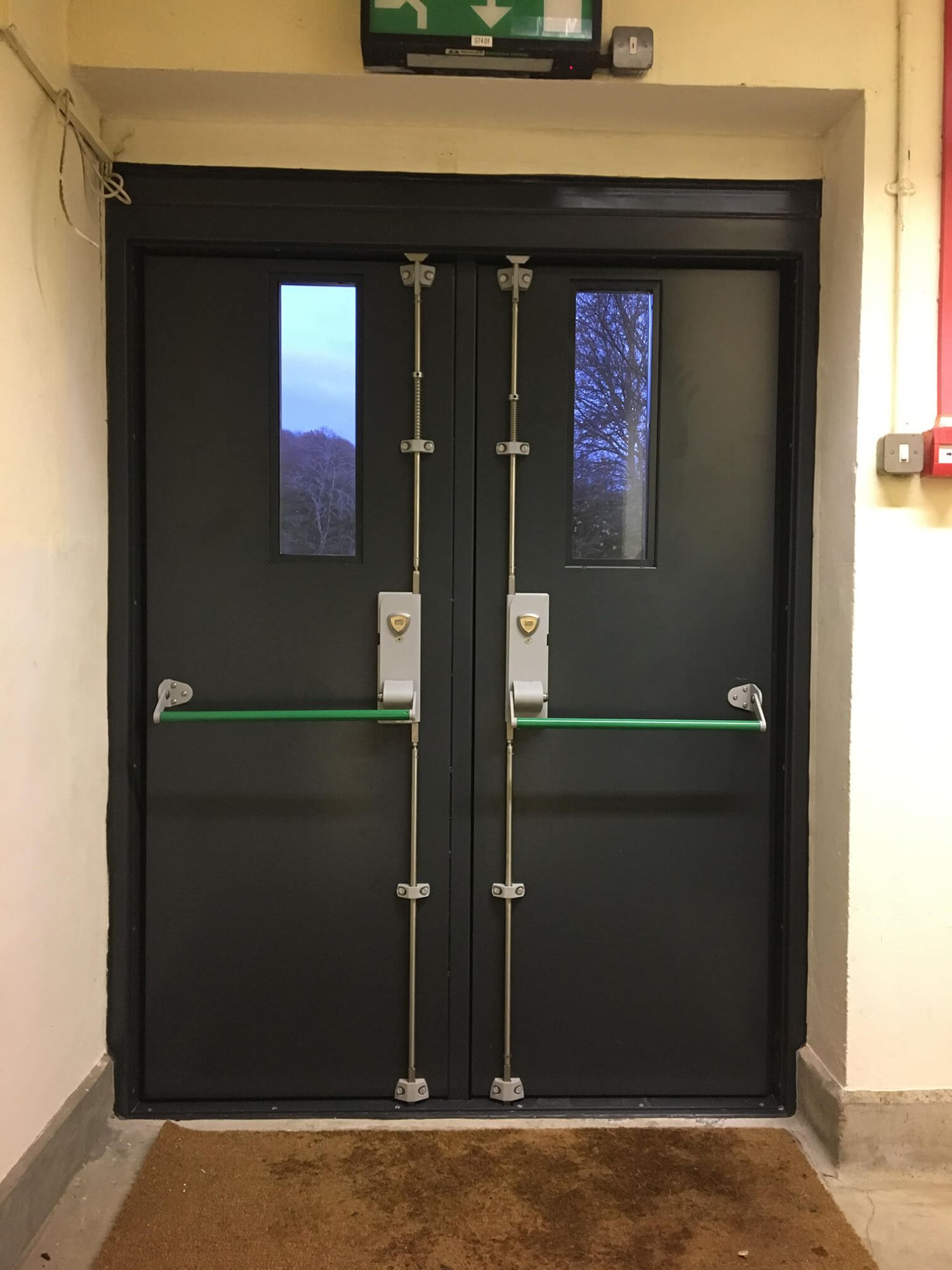

Closed grey double doors with narrow vision panels, green push bars and multi-point locking rods

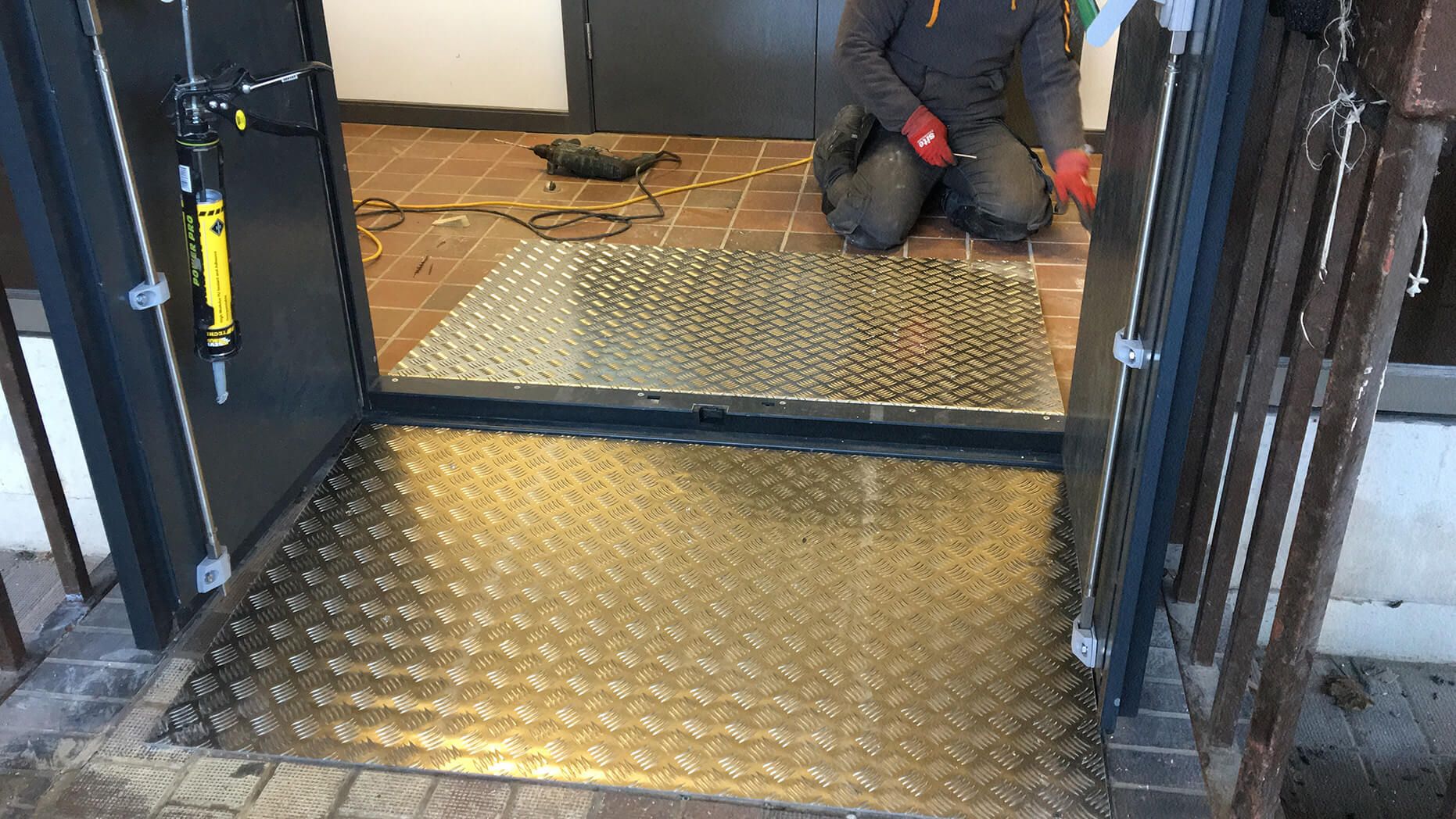

Operative kneeling beside a doorway fitted with a chequer plate aluminium threshold ramp

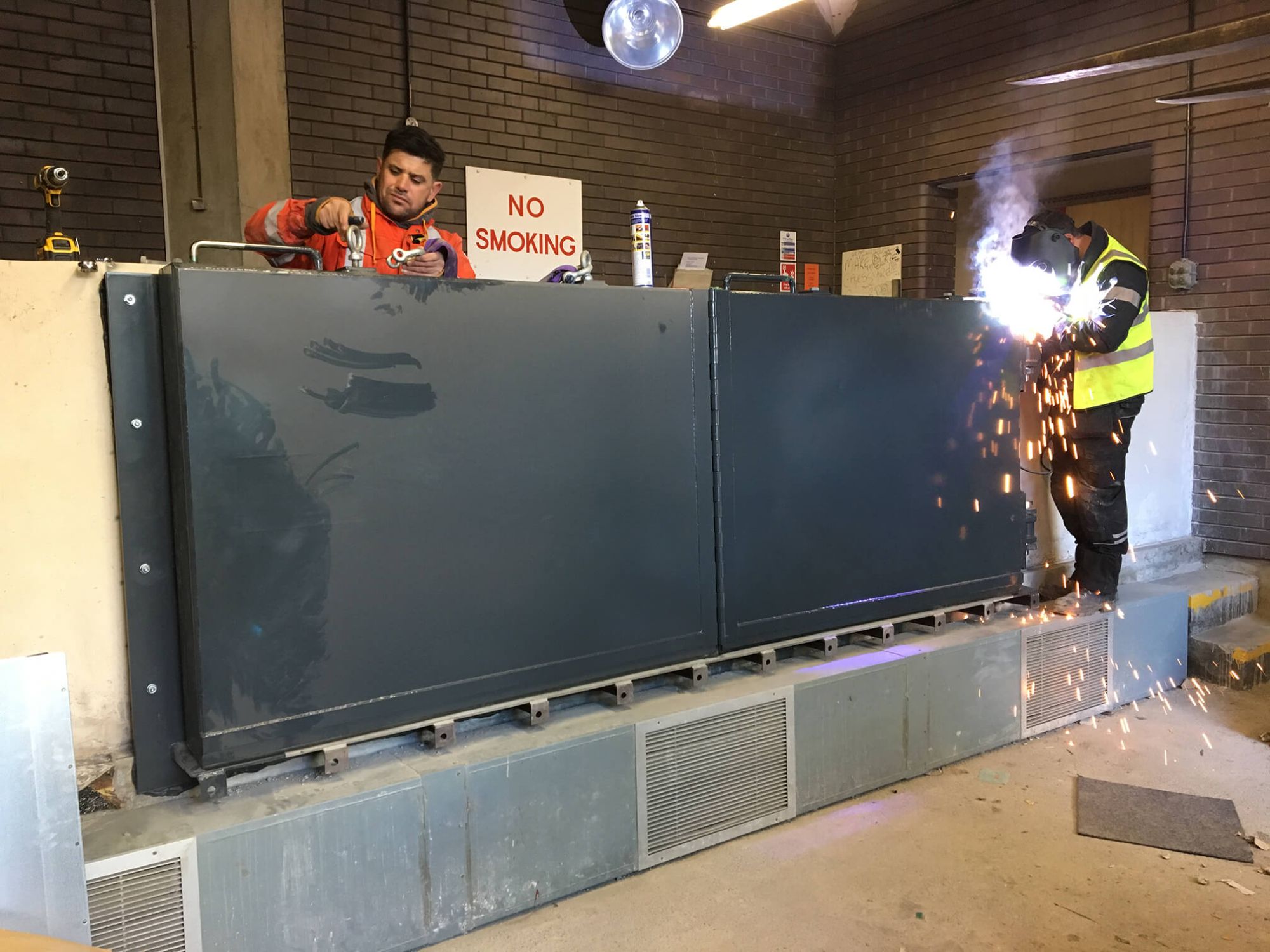

Operatives welding beside a hinged grey flood gate on a raised plinth

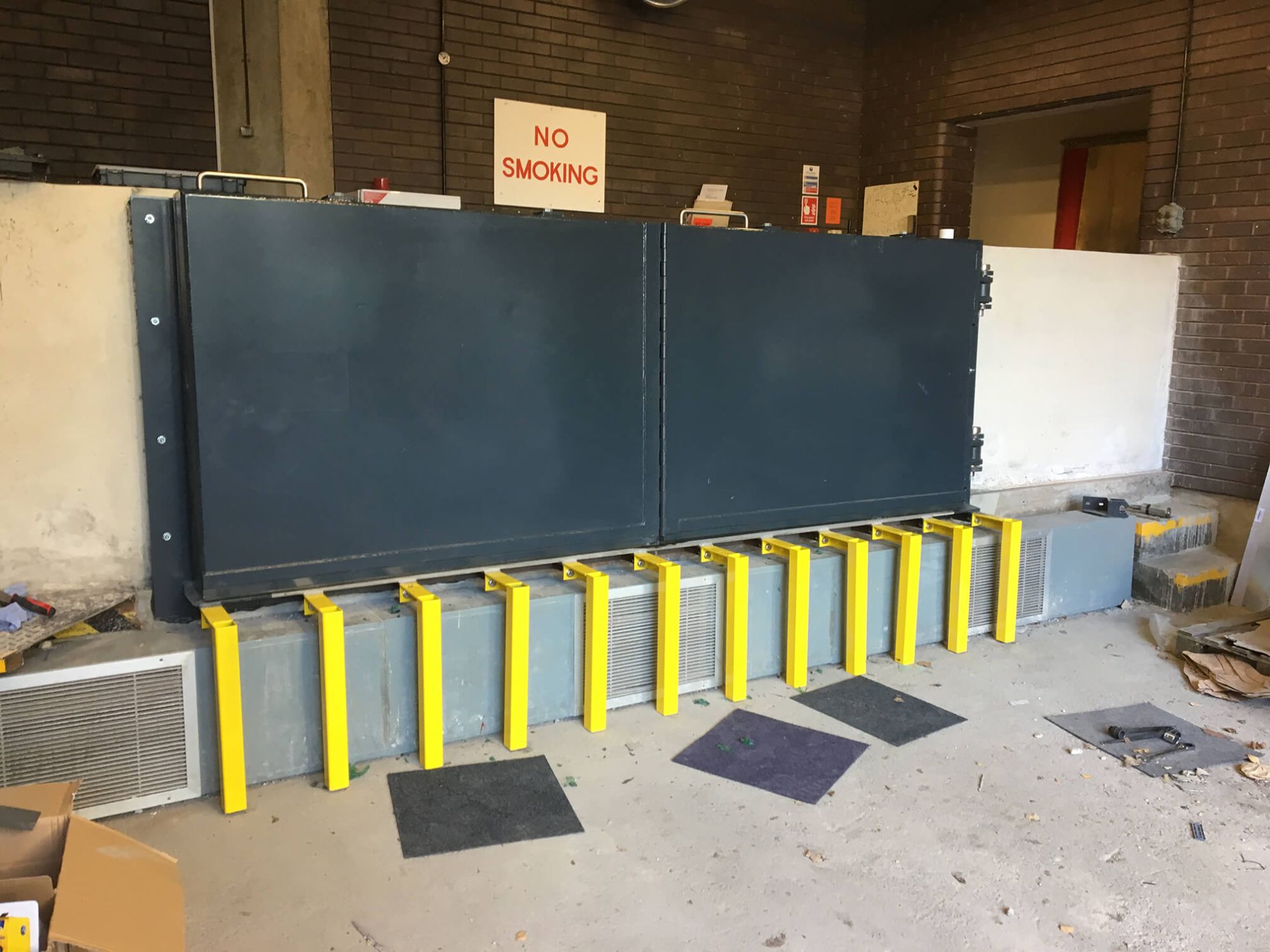

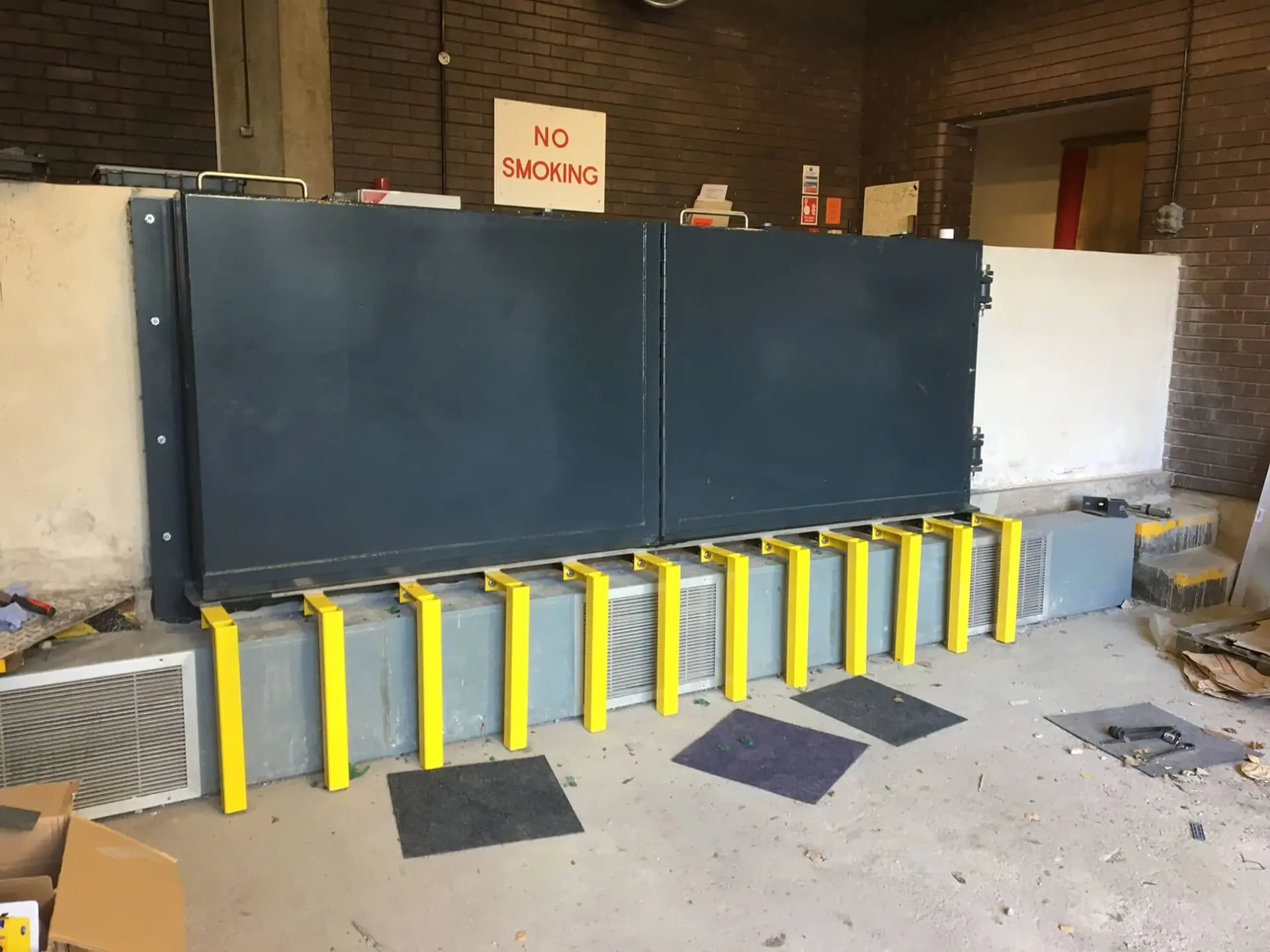

Hinged grey flood gate above bright yellow steel support brackets along a plinth

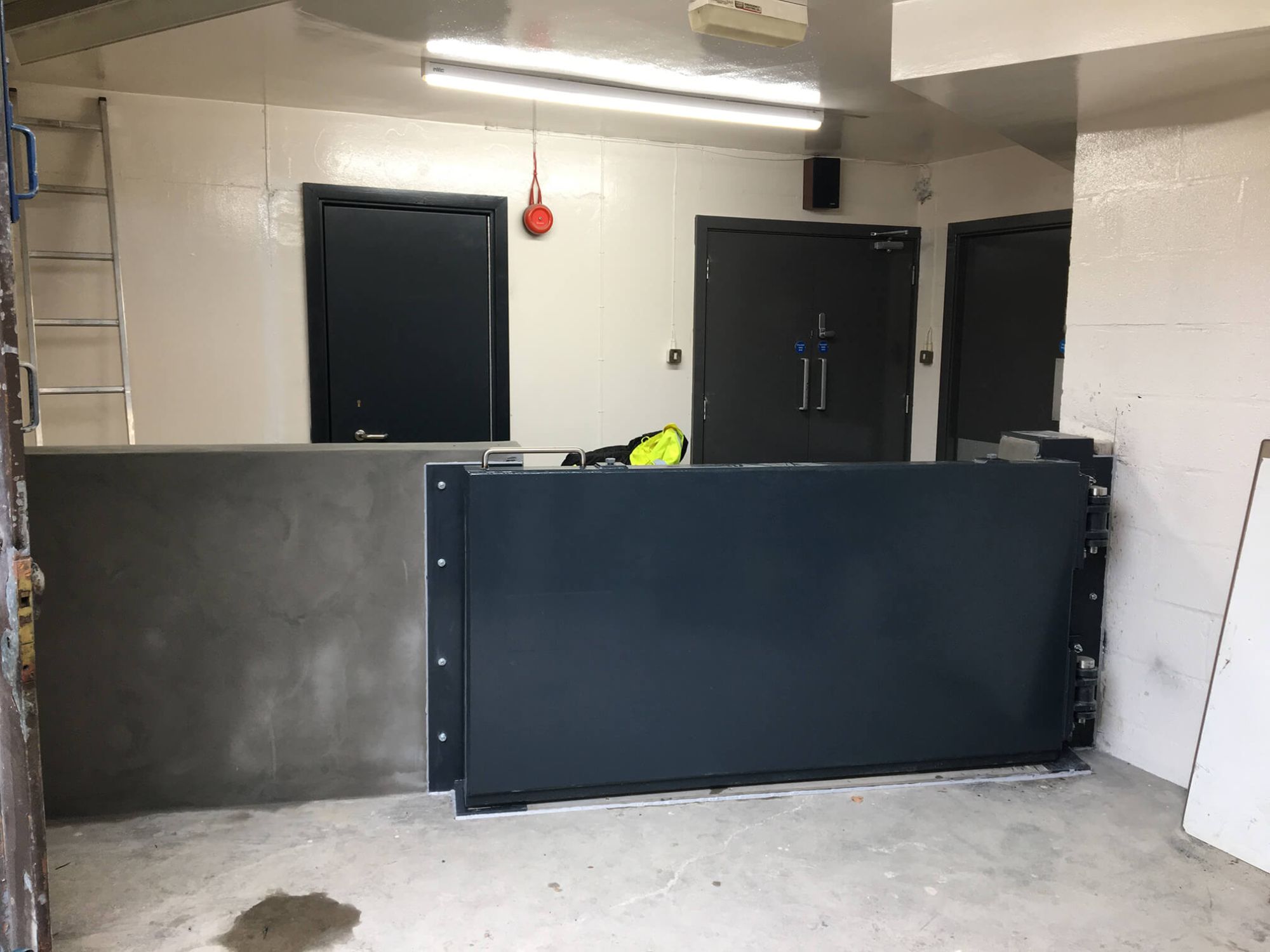

Grey flood gate closed across an interior opening beside a rendered concrete wall

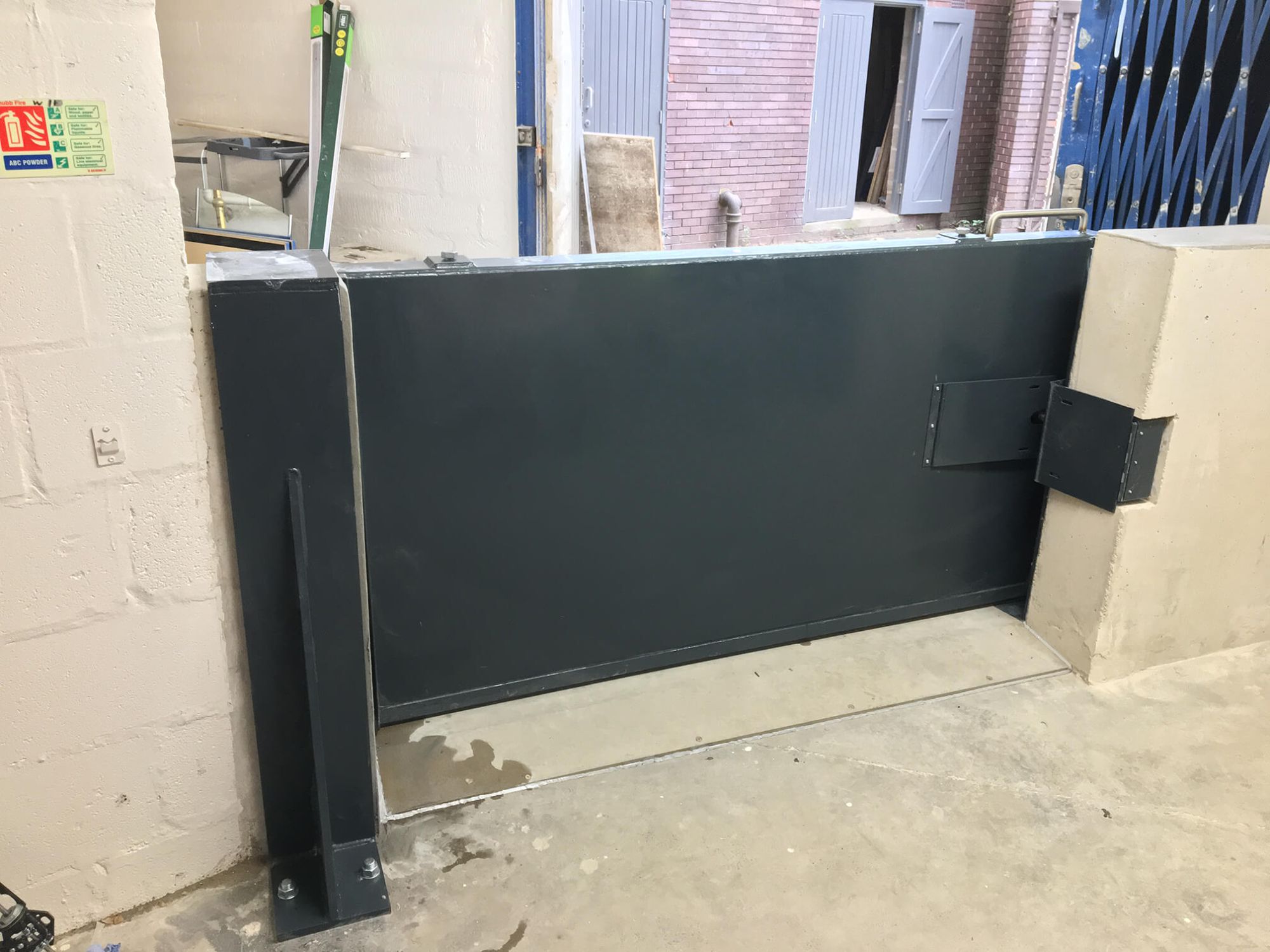

Single leaf grey flood gate with steel end post bolted to a concrete floor

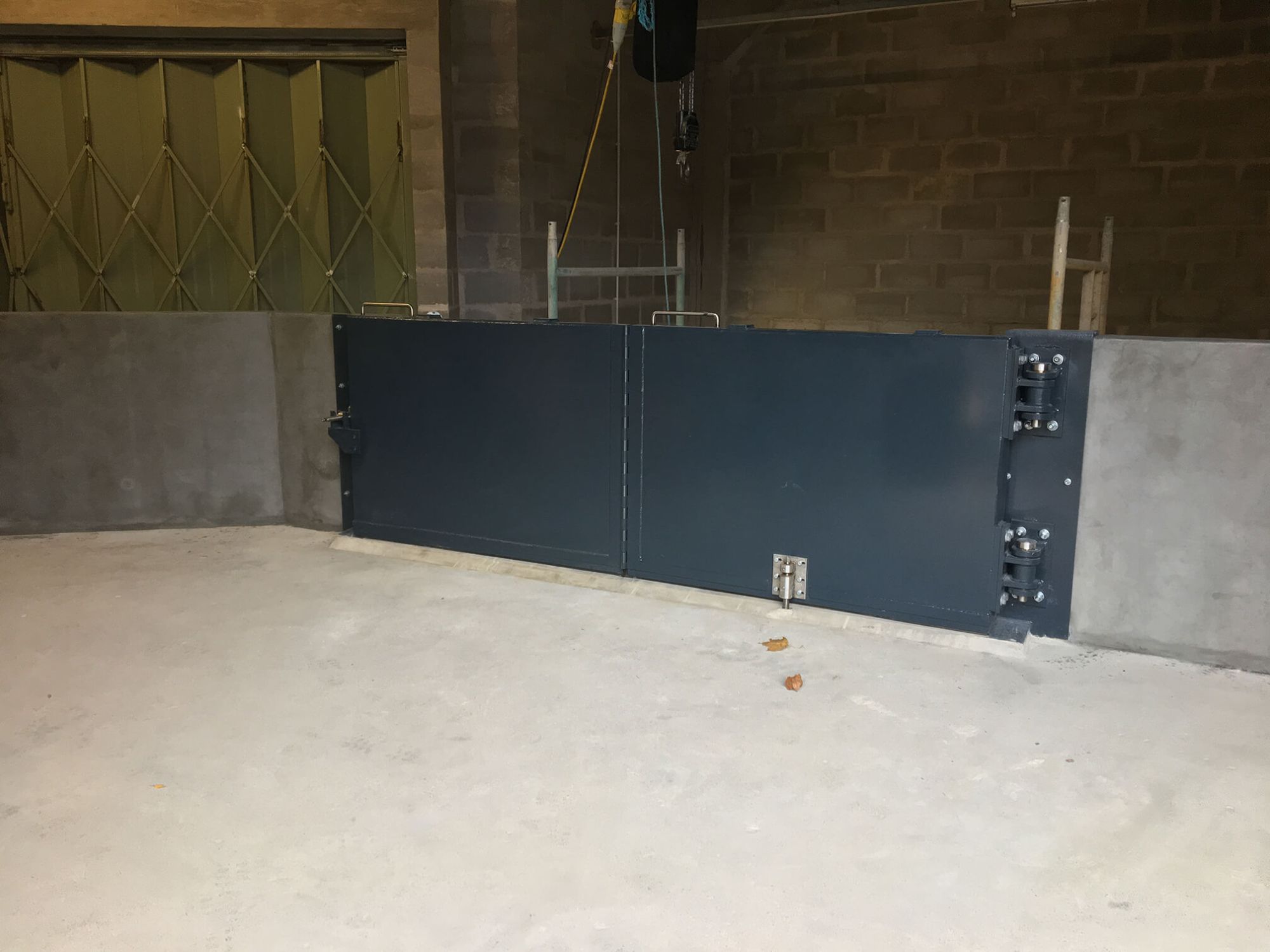

Double leaf dark blue flood gate with hinges and bolt between concrete walls

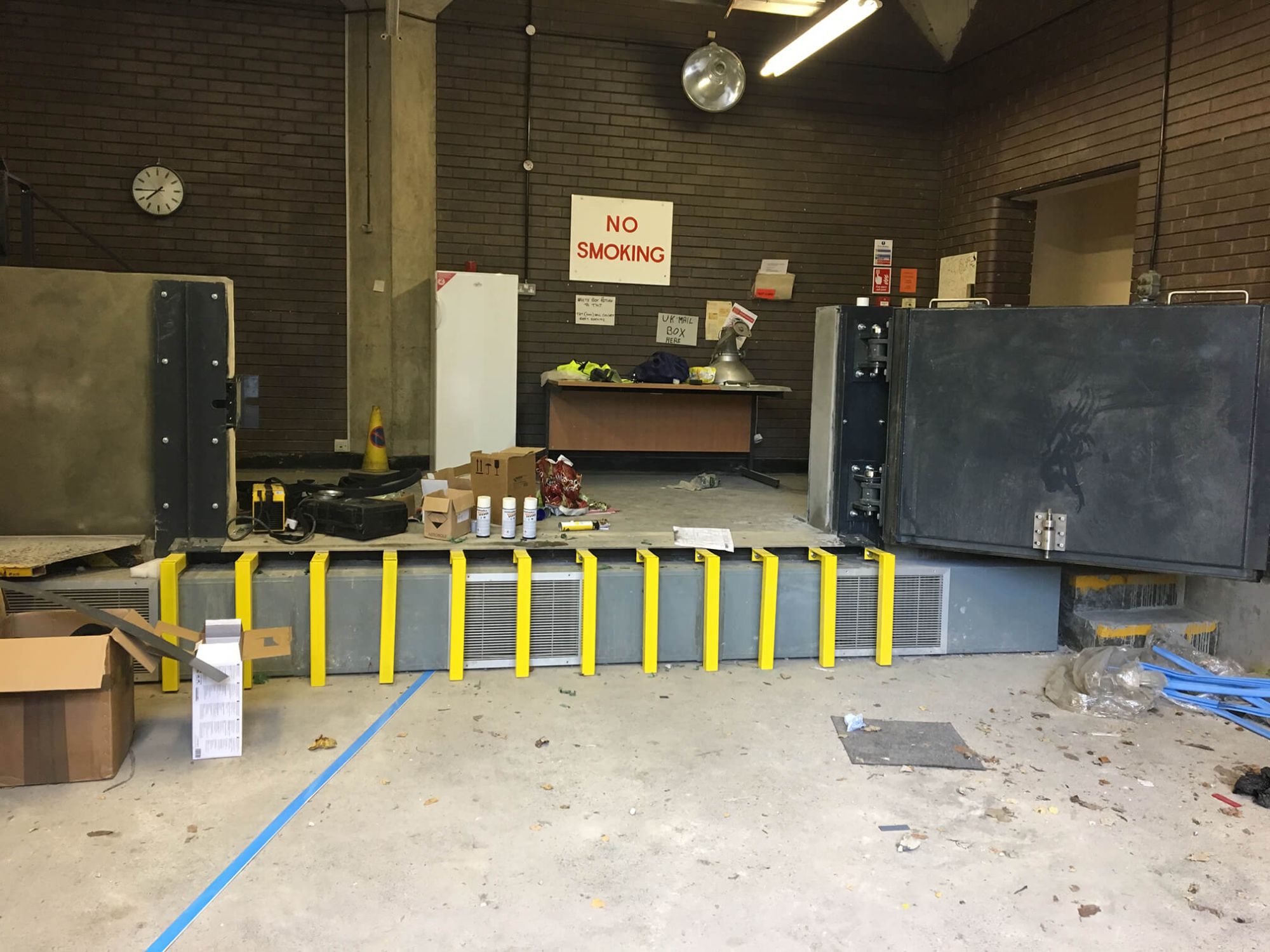

Row of yellow steel supports beneath an open hinged flood gate in a loading bay
Hinged flood gate folded back against a brick wall beside yellow support brackets
Angled view of a bifold grey flood gate with steel end post and handles

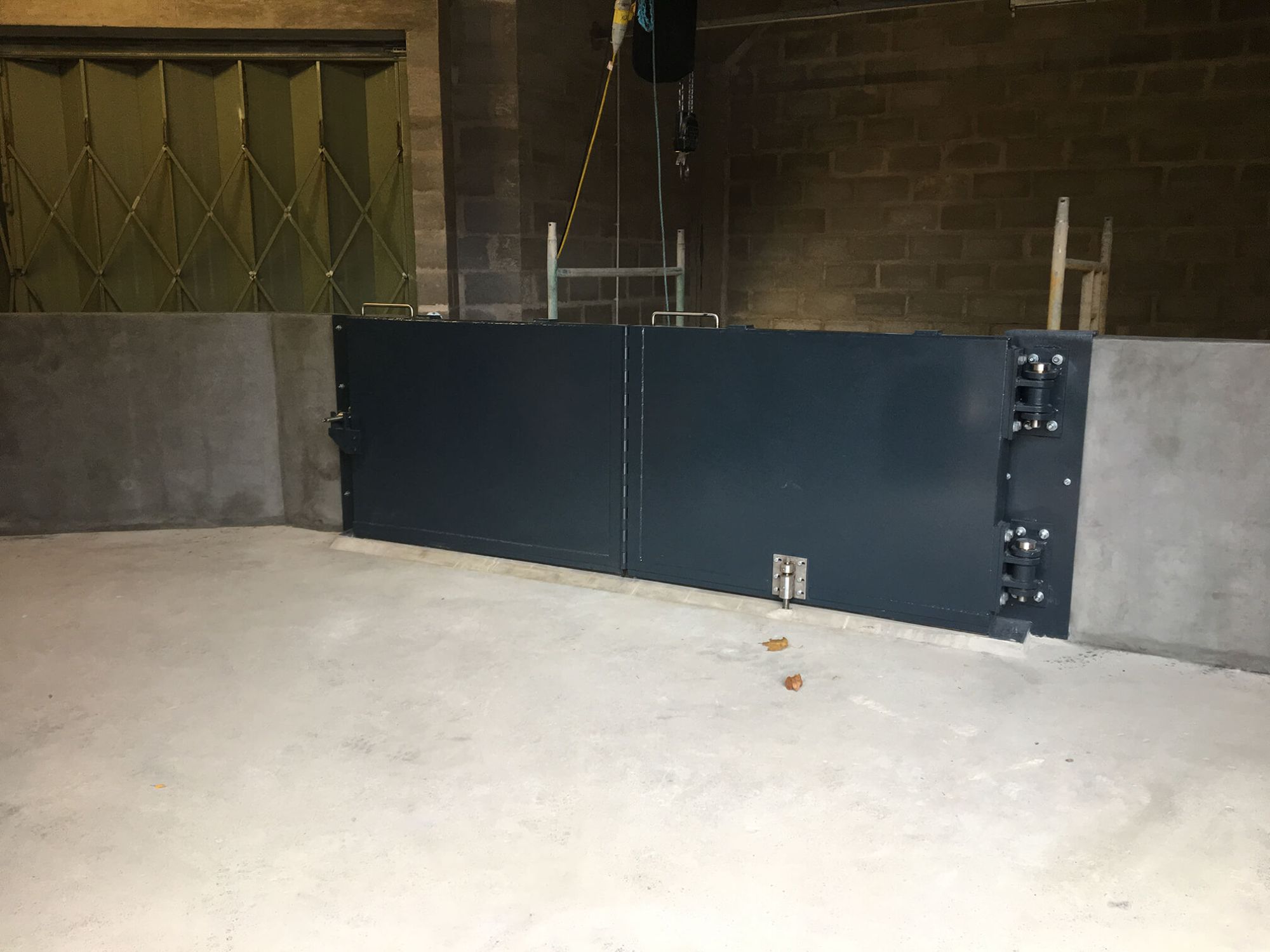

Closed bifold dark blue flood gate with stainless steel hinges set between concrete walls
