Brown timber-clad flood gate with steel hinges fitted into a stone garden wall

Effective & Versatile

Access points come in a wide range of sizes, and so do our flood gates. Ranging from small pedestrian entrances to large vehicle-access gates, our flood gates are designed to protect them all.



Configured to your needs

Flood gates can be configured in a huge number of ways. If manual operation is impractical then the gate can be made to be fully-automated. If an opening is in a tight space then the gate leafs can be designed to bi-folding. Our unique approach to flood defence ensures that we create solutions that based on your needs.



Built to last

We believe in simplicity. Our flood gates are designed in house, with as few moving parts as possible, meaning they need very little maintenance and are ready to defend when called upon.

Technical line drawing of an MM Engineering flood gate



Technical spec

  • Made from mild steel or stainless steel (304 or 316L)
  • Welding standards in line with BS EN 1090
  • Design codes:
  • BS EN 1990 Eurocode 0: Basis of Structural Design
  • BS EN 1993, Eurocode 3: Design of Steel structures
  • Fixings designed and proved using Hilti PROFIS Anchors Software
  • Design variants include vehicular, bi-fold and pedestrian access and can be designed as cast-in or faced-fixed
  • Vehicle-access using 28mm 200x10mm 304 stainless steel threshold at an 8 degree angle
  • Pivotability to 190 degrees
  • Coated using 2 pack epoxy paint system for high resistance to corrosive atmospheres
Product resources

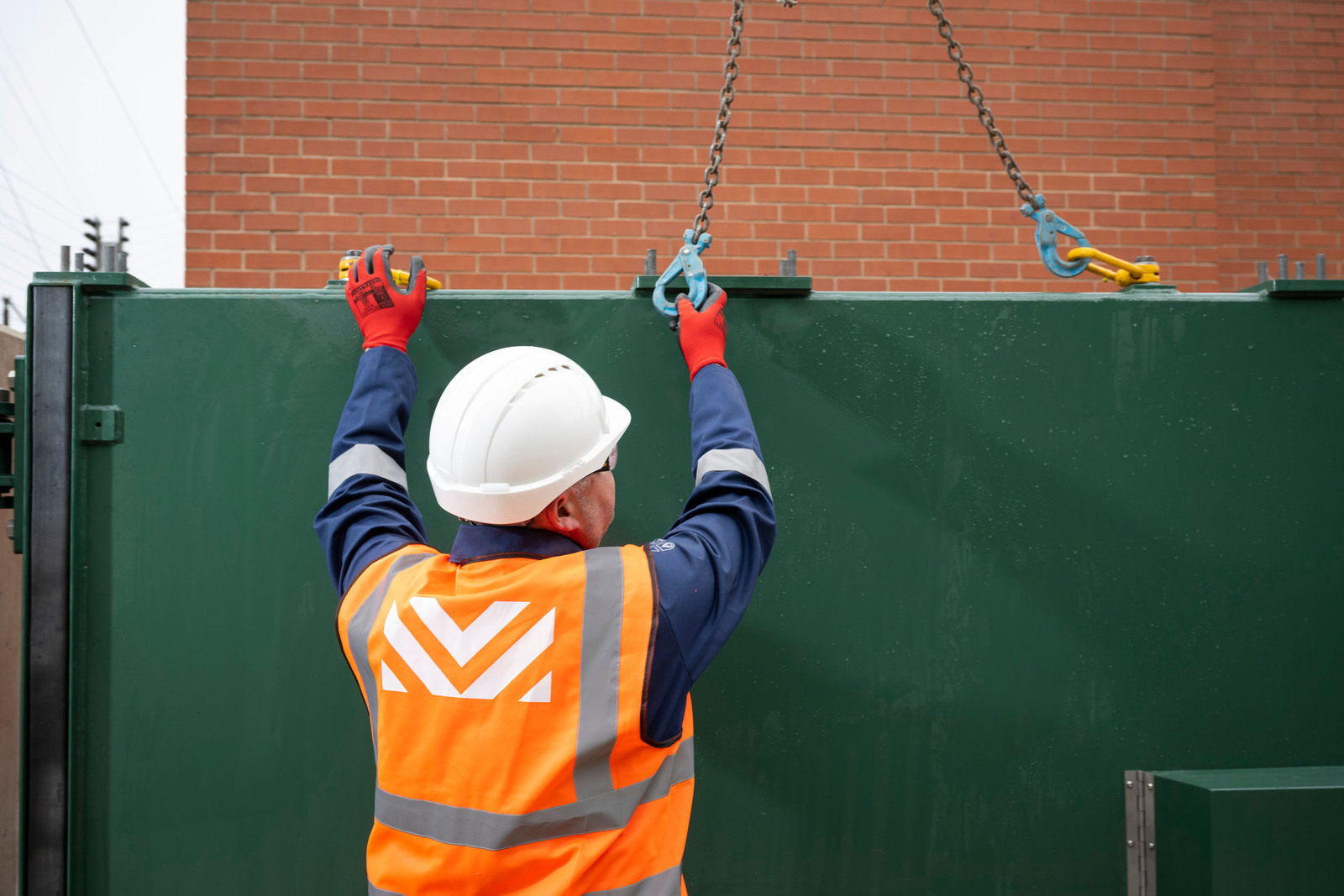

Installer in hard hat guiding a green flood gate leaf lifted by chains and lifting shackles

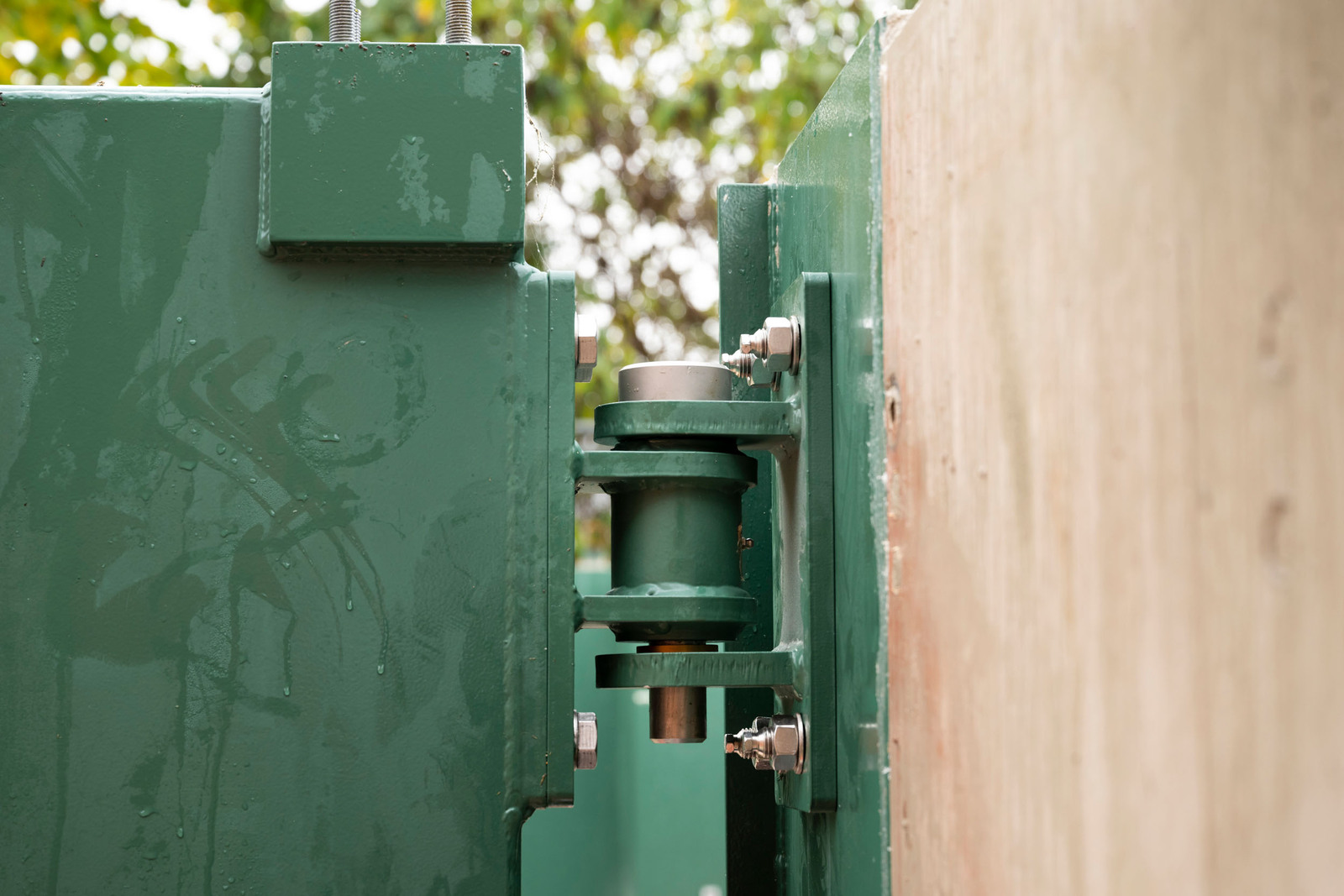

Close view of the hinge assembly and bolted brackets on a green flood gate

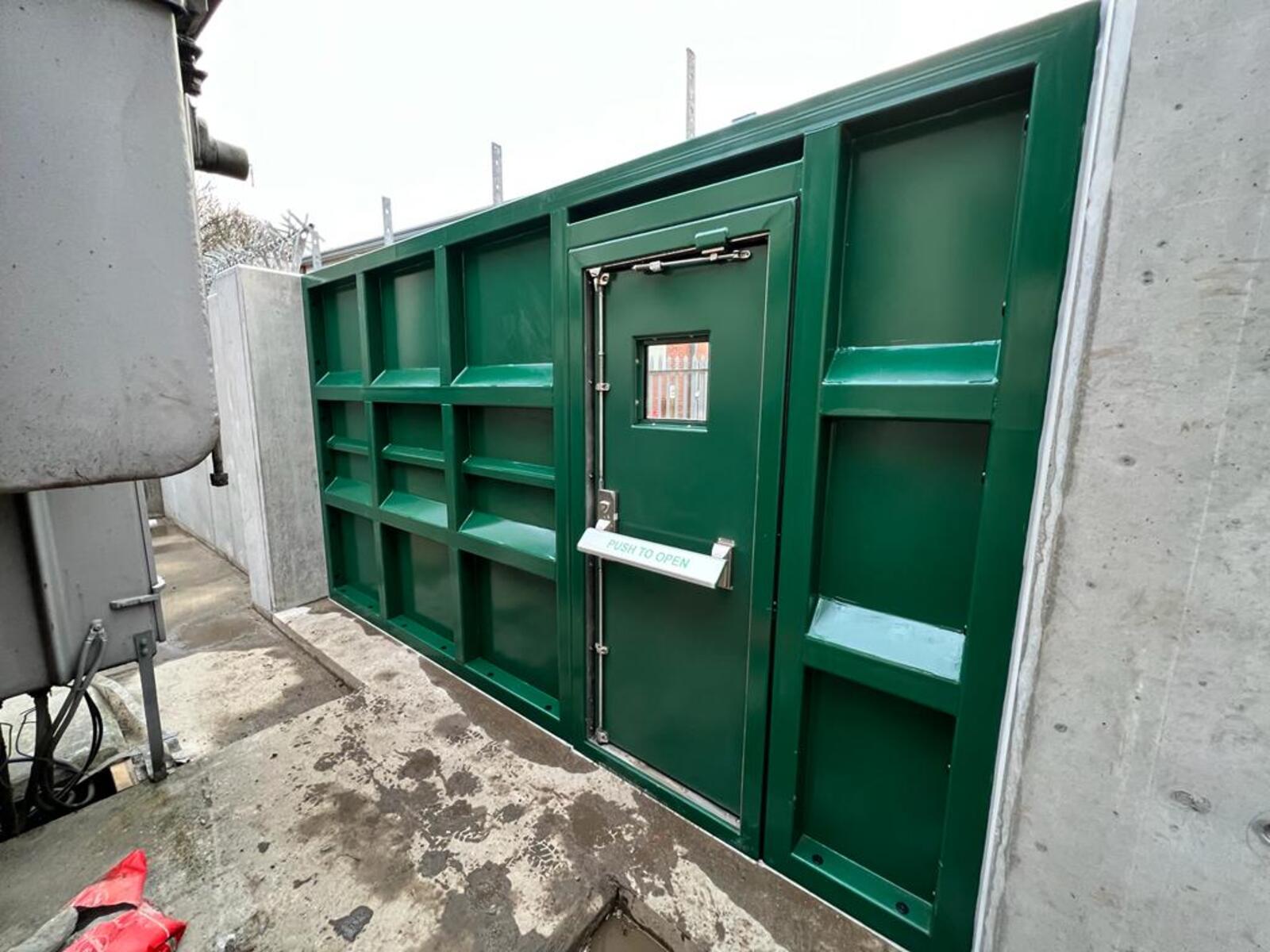

Green flood defence gate panel with integrated pass door and push bar, set between concrete walls

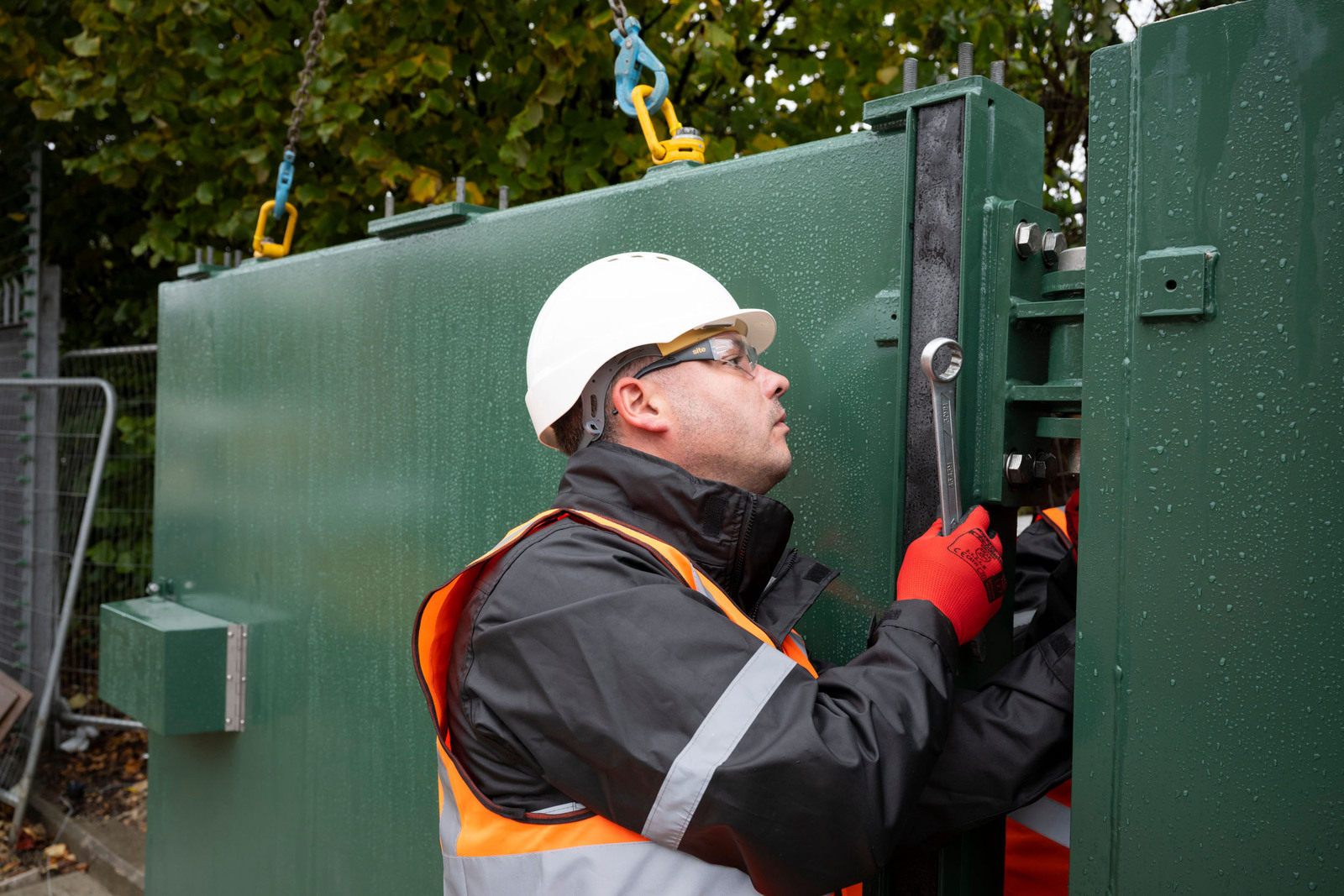

Engineer with spanner adjusting the hinge of a green flood gate suspended from a crane

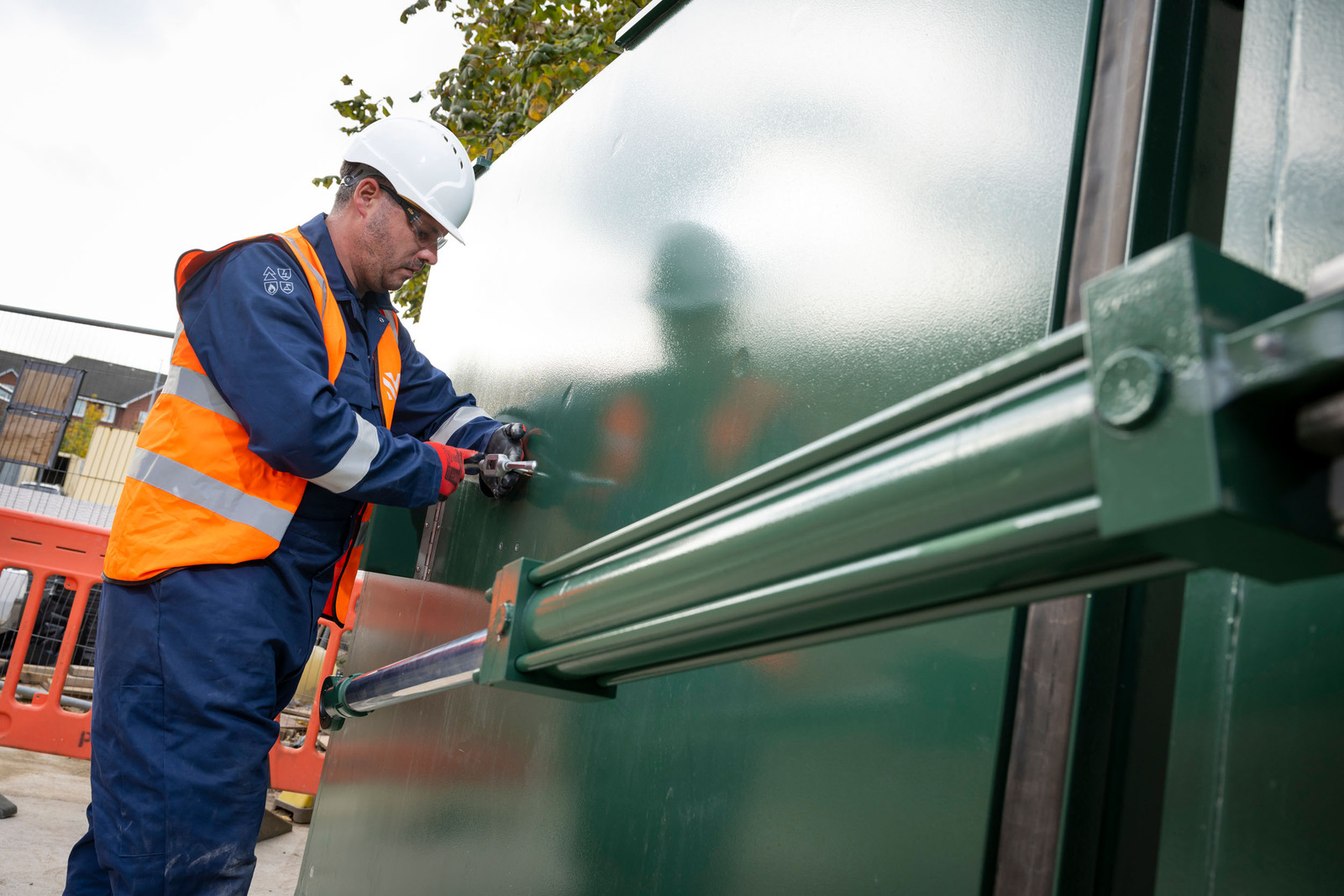

Engineer tightening fixings beside the hydraulic cylinder on a green flood gate leaf

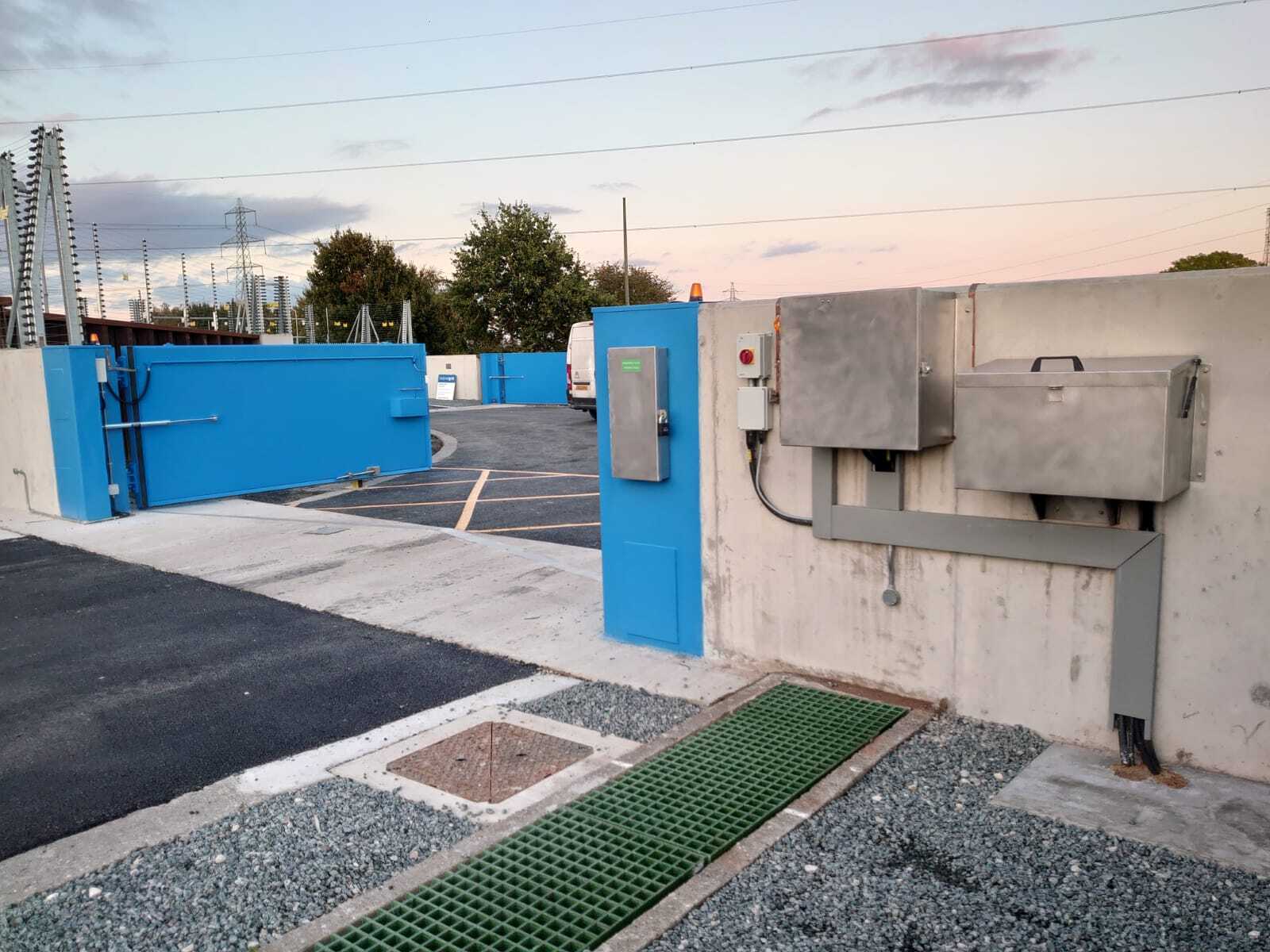

Blue hydraulic flood gate open at a substation entrance with stainless steel control boxes on the wall

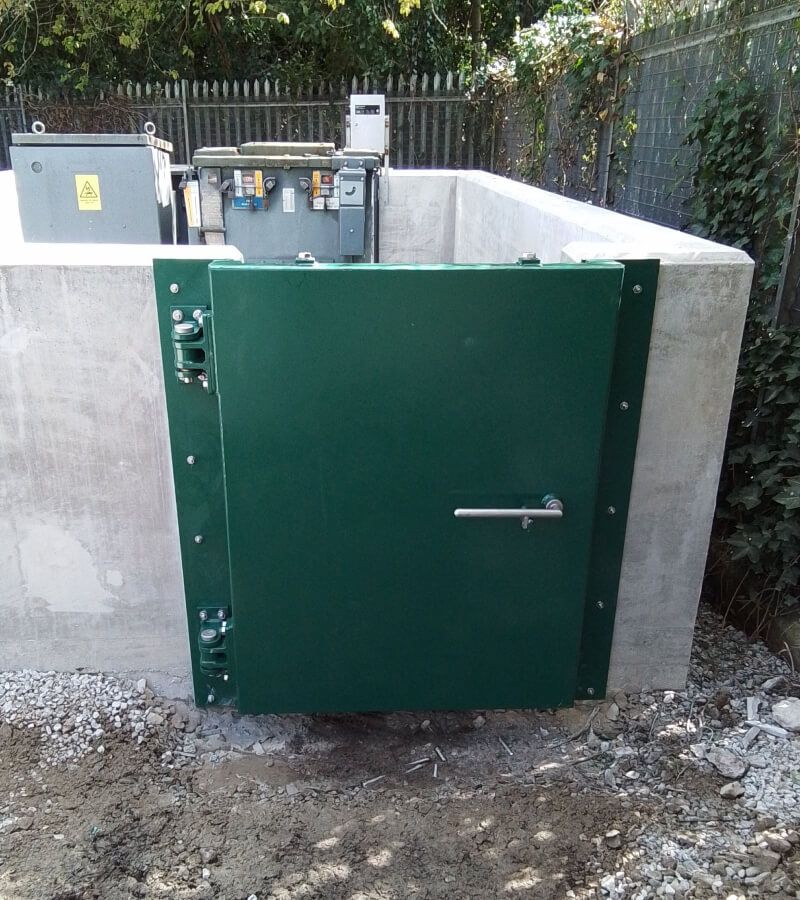

Green pedestrian flood gate with a pull handle set into a concrete wall around electrical equipment

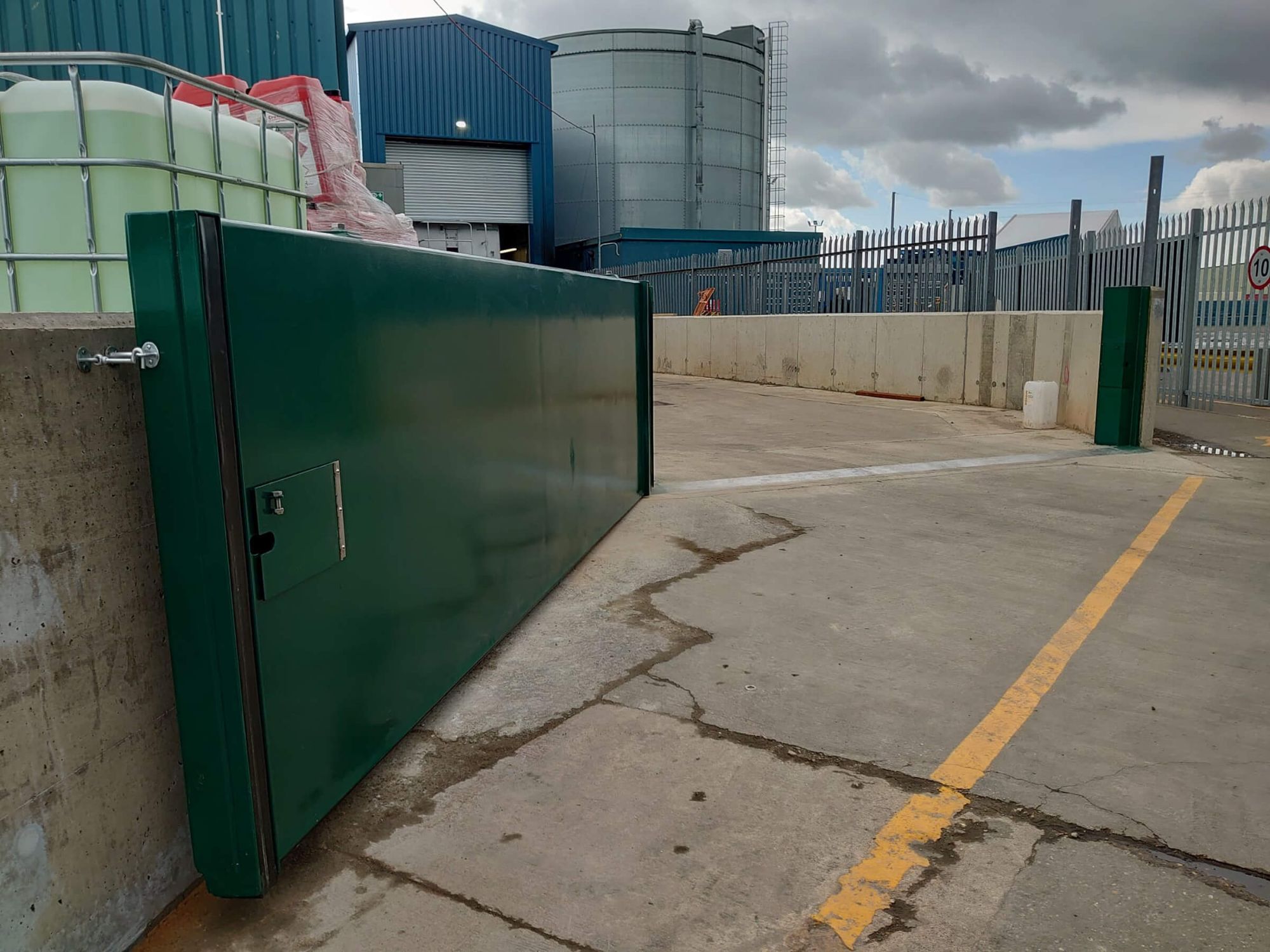

Single green flood gate leaf swung open across a concrete threshold at an industrial site

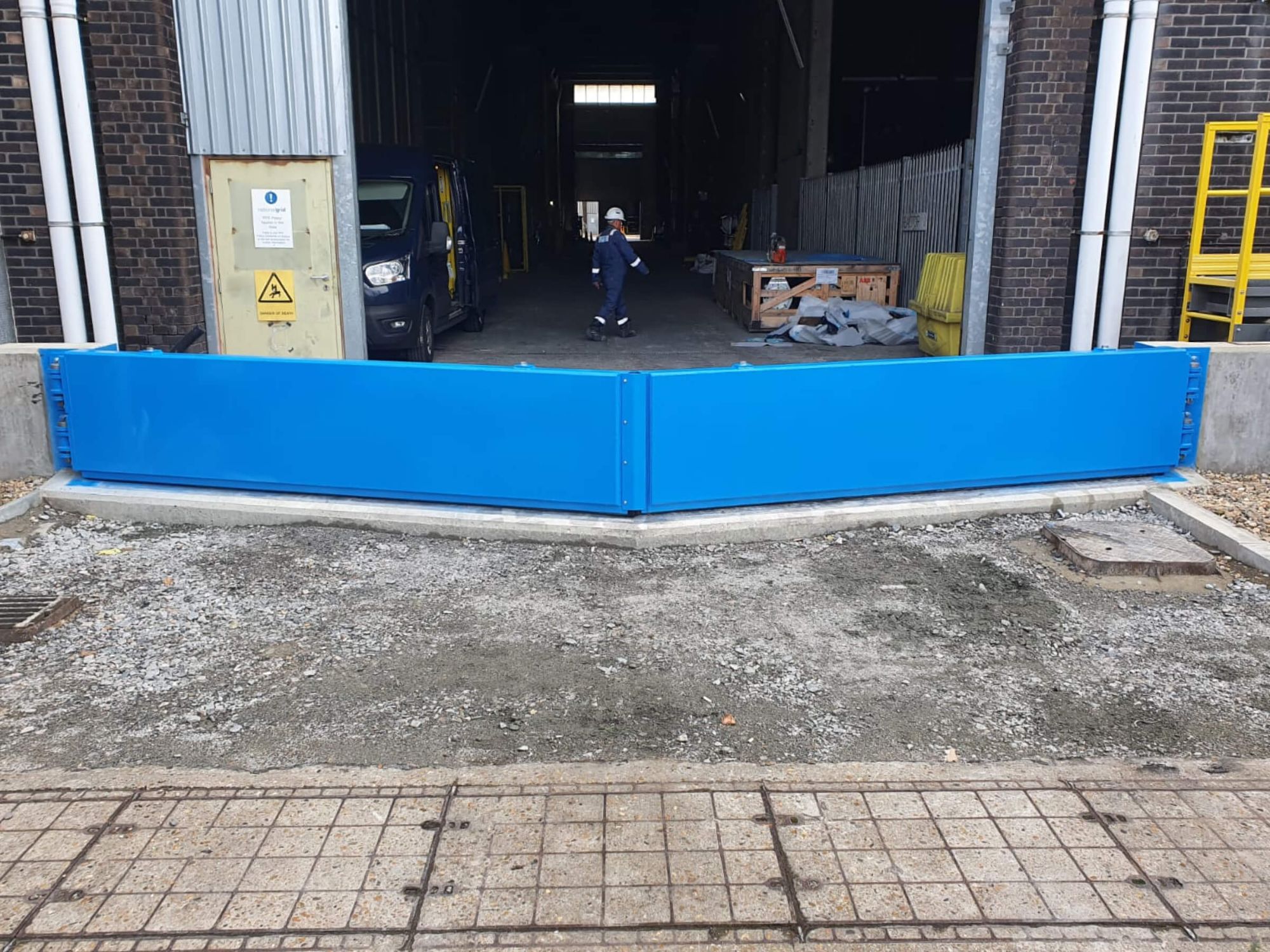

Blue double flood gate closed across a loading bay entrance with a worker walking behind

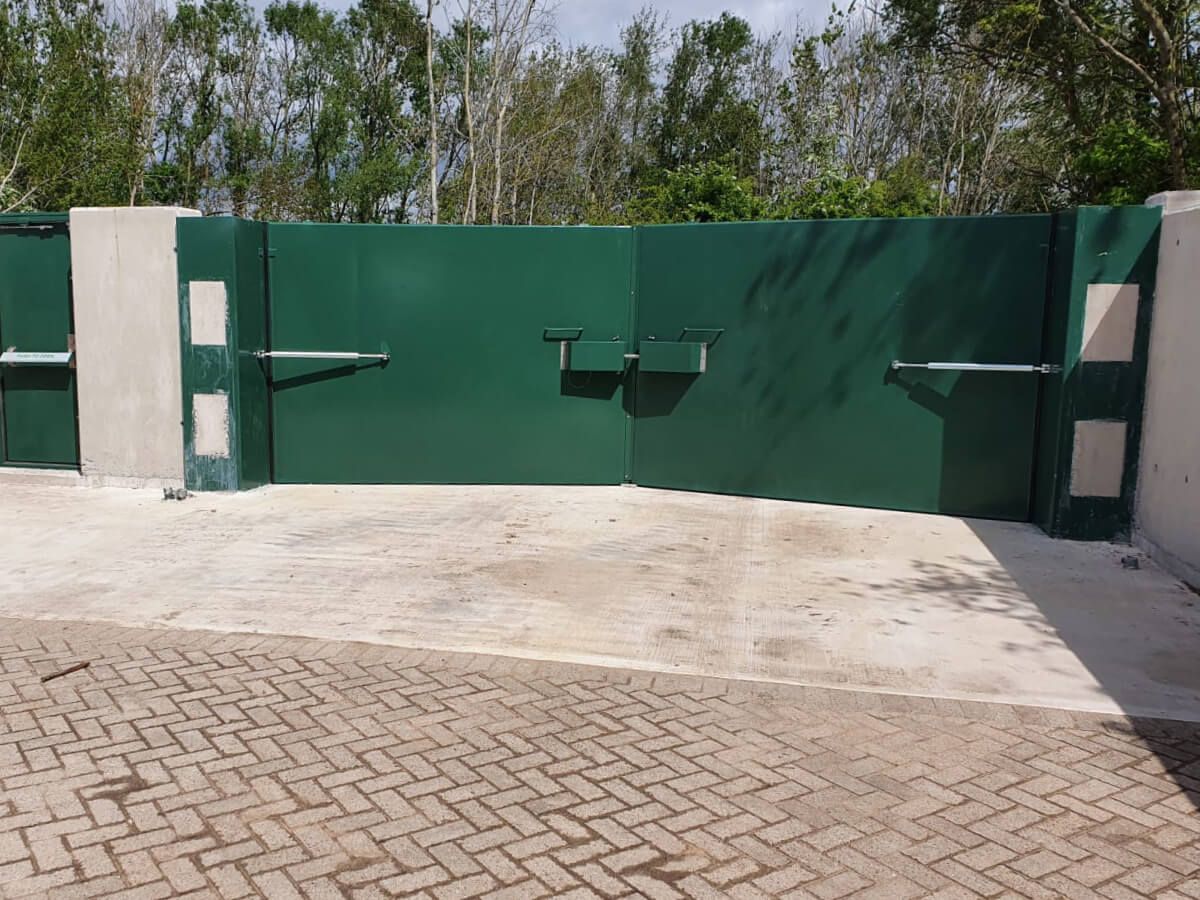

Green double flood gate with gas strut dampers closed between concrete piers beside a paved drive

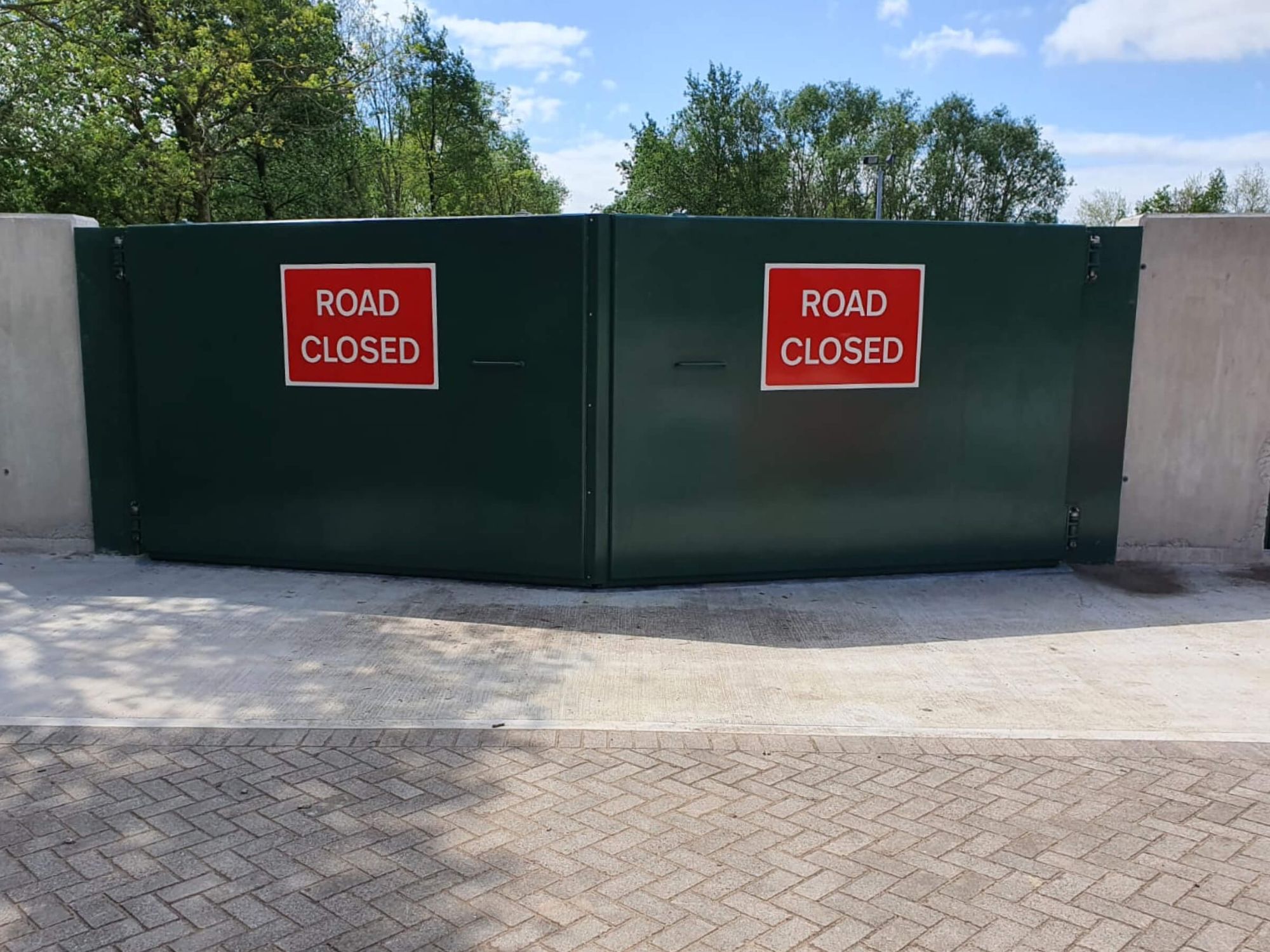

Pair of dark green flood gates closed across a road, each carrying a red road closed sign
Green flood gate with one leaf closed and one open, beside a green cabinet in a compound

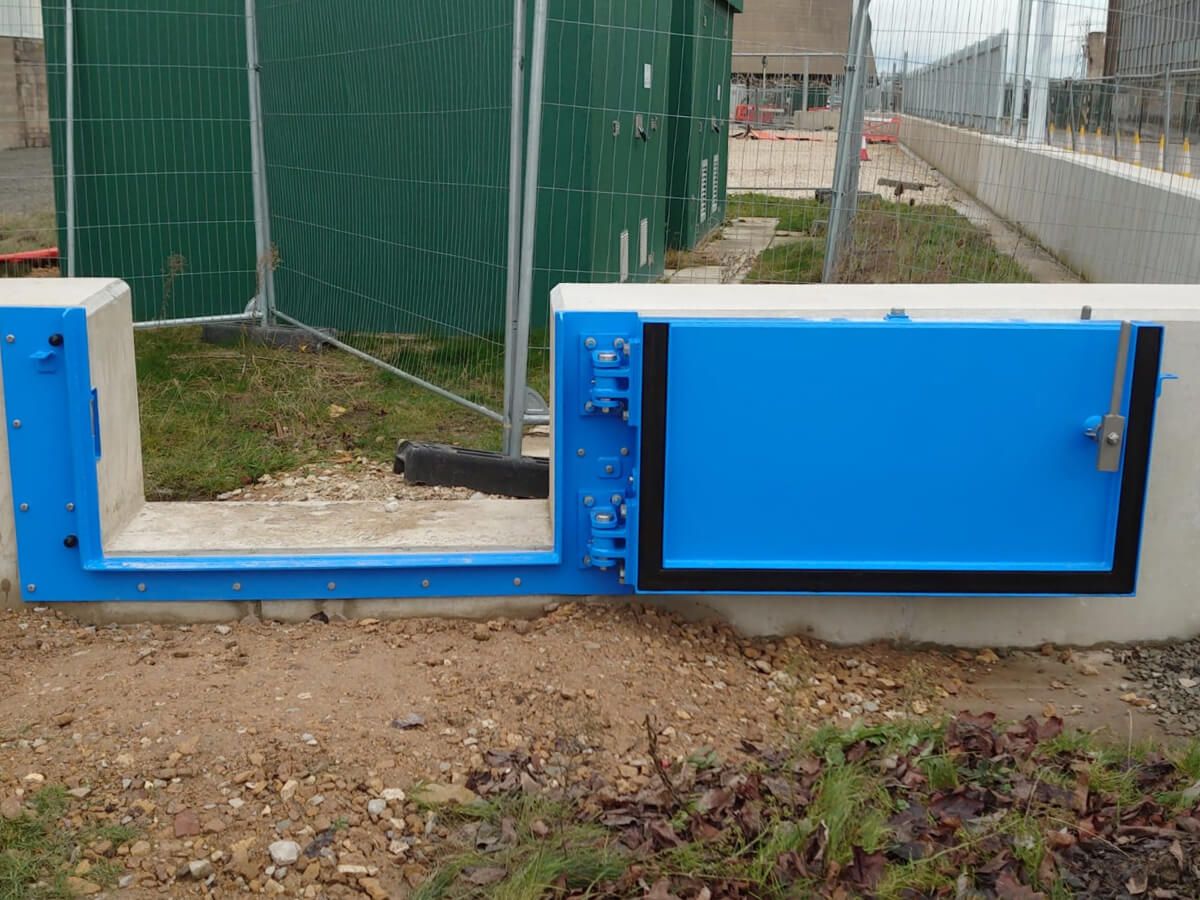

Blue flood gate leaf with black seal and bolted hinges, closed beside an open concrete wall opening

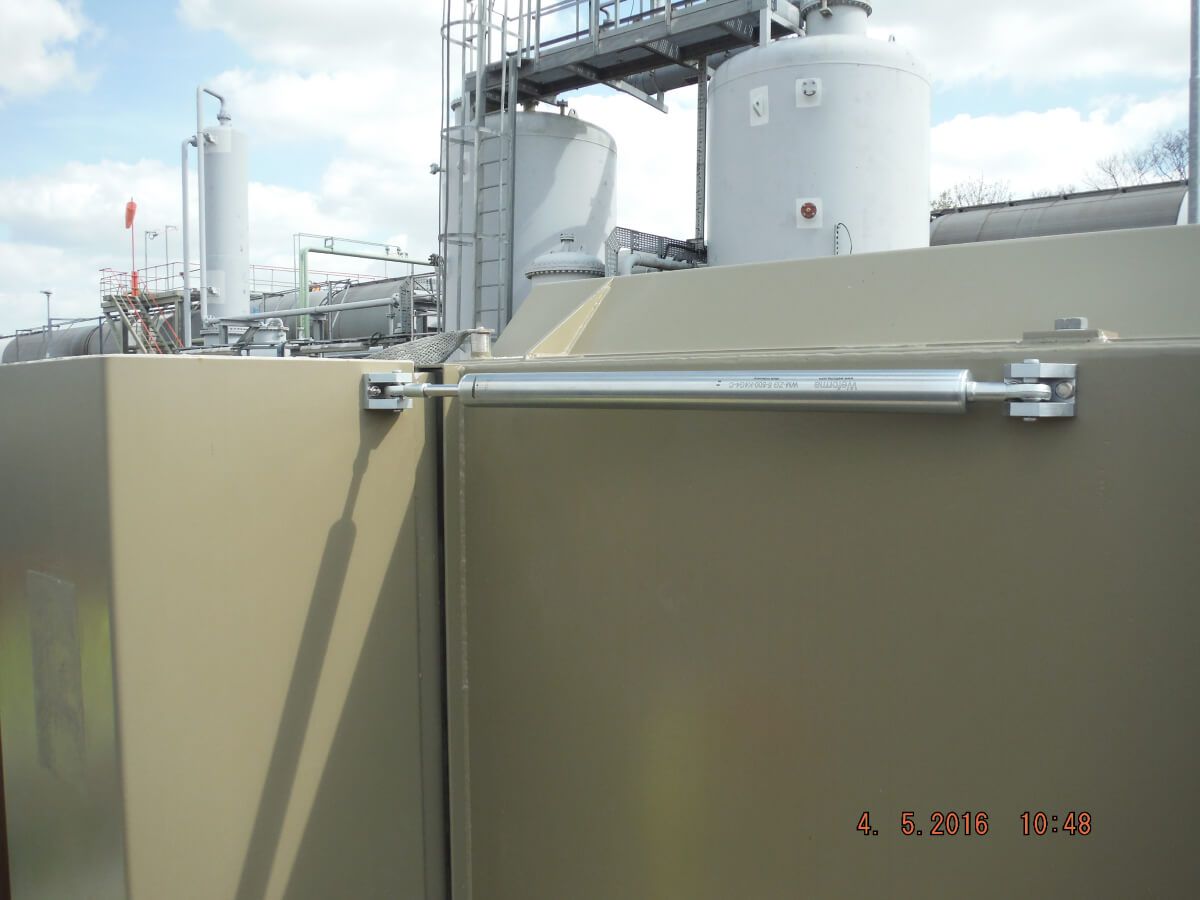

Stainless deceleration cylinder fitted to the dry side of a khaki flood gate beside industrial tanks

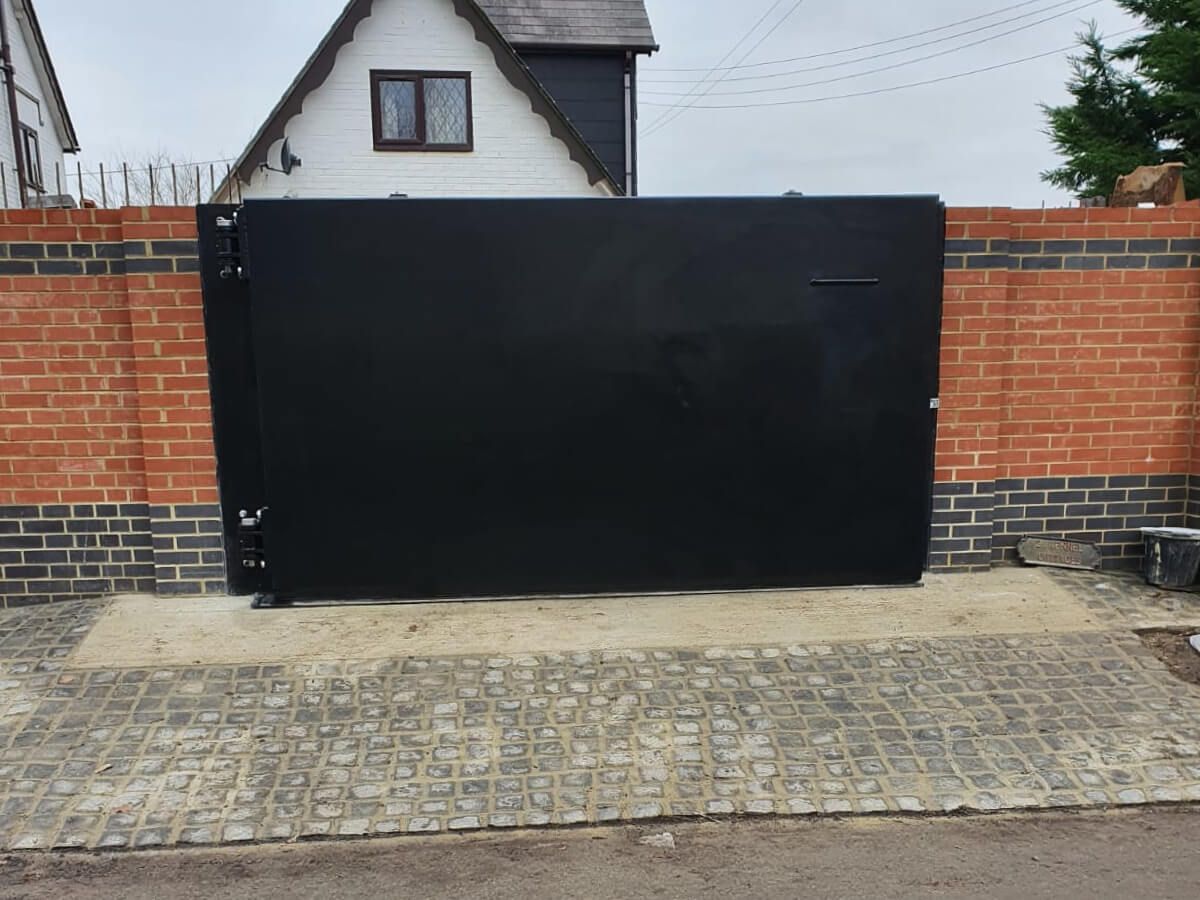

Large black single-leaf flood gate set between red brick walls at a residential driveway

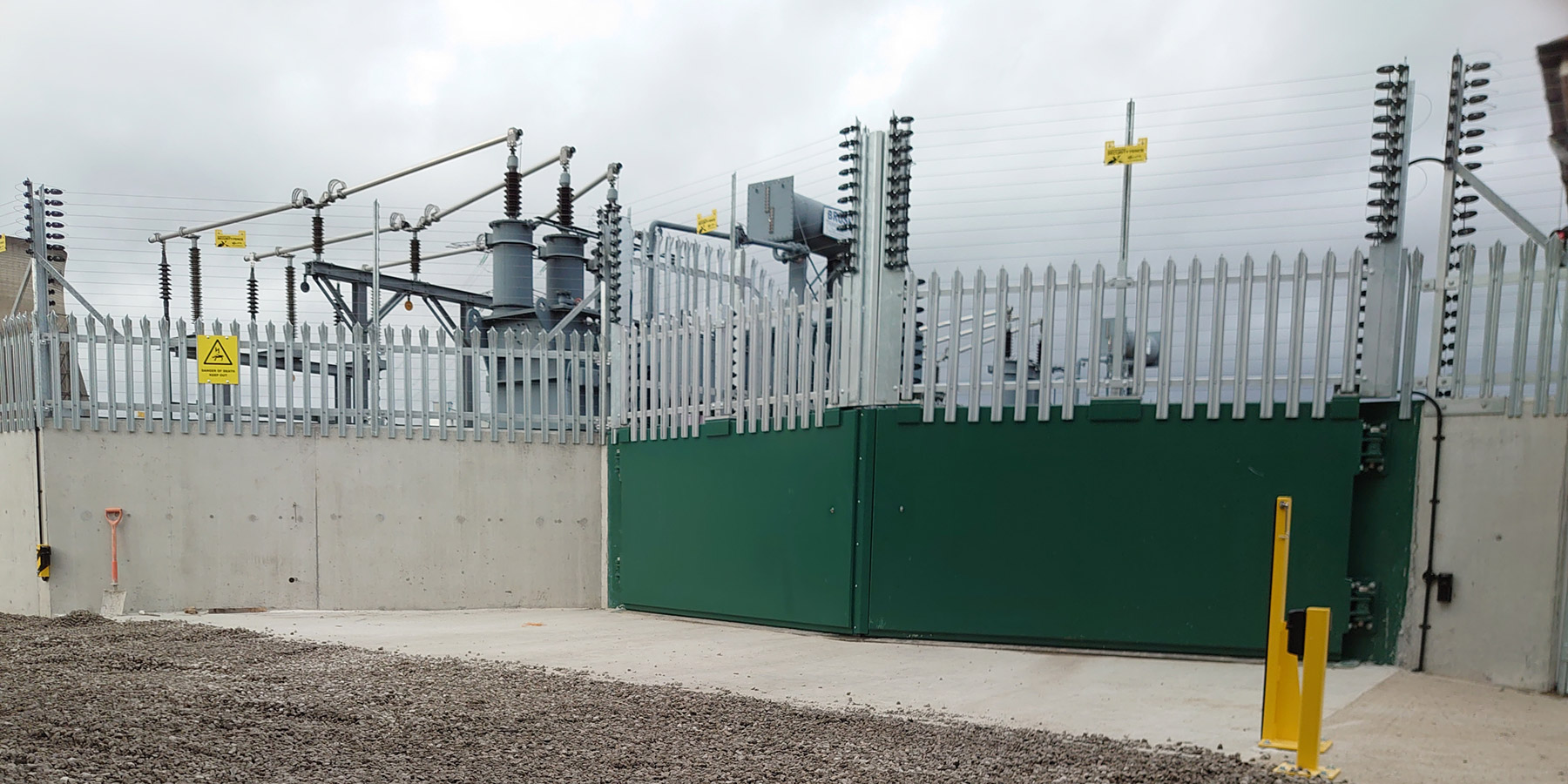

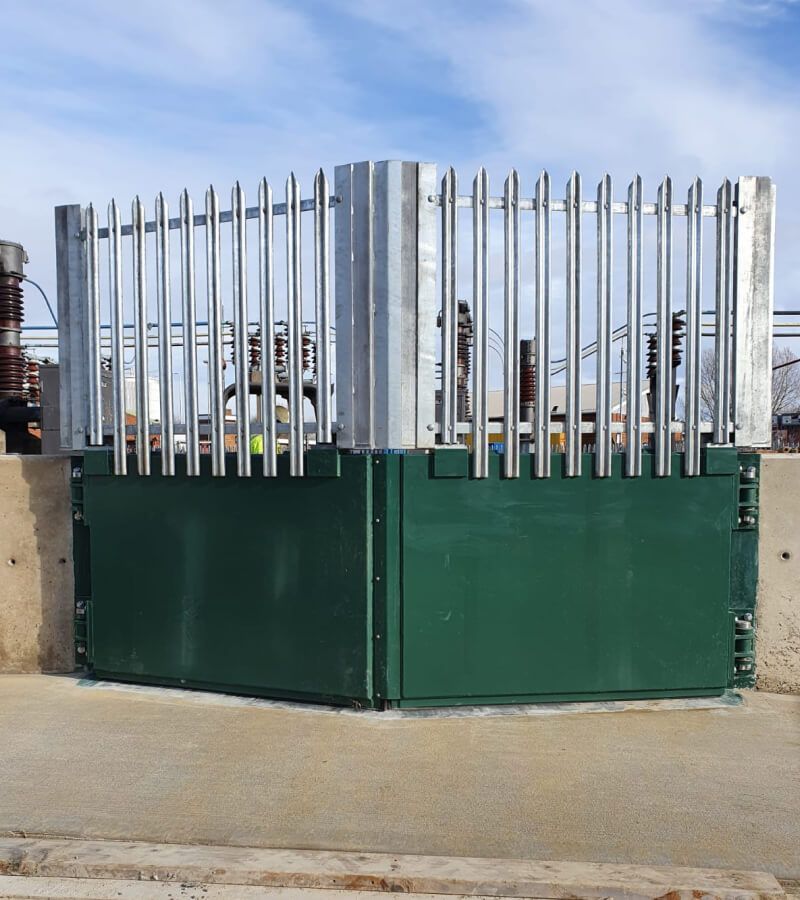

Green flood gate with galvanised palisade fencing on top, installed between concrete walls at a substation

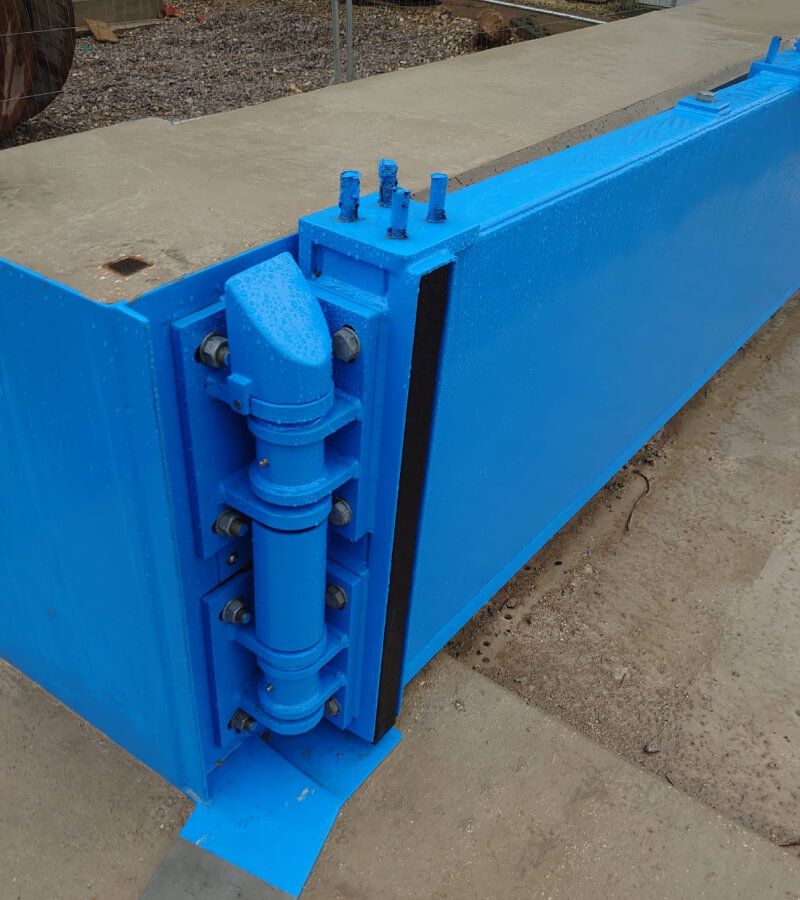

Blue steel flood gate with hinge assembly and black seal fitted across an opening

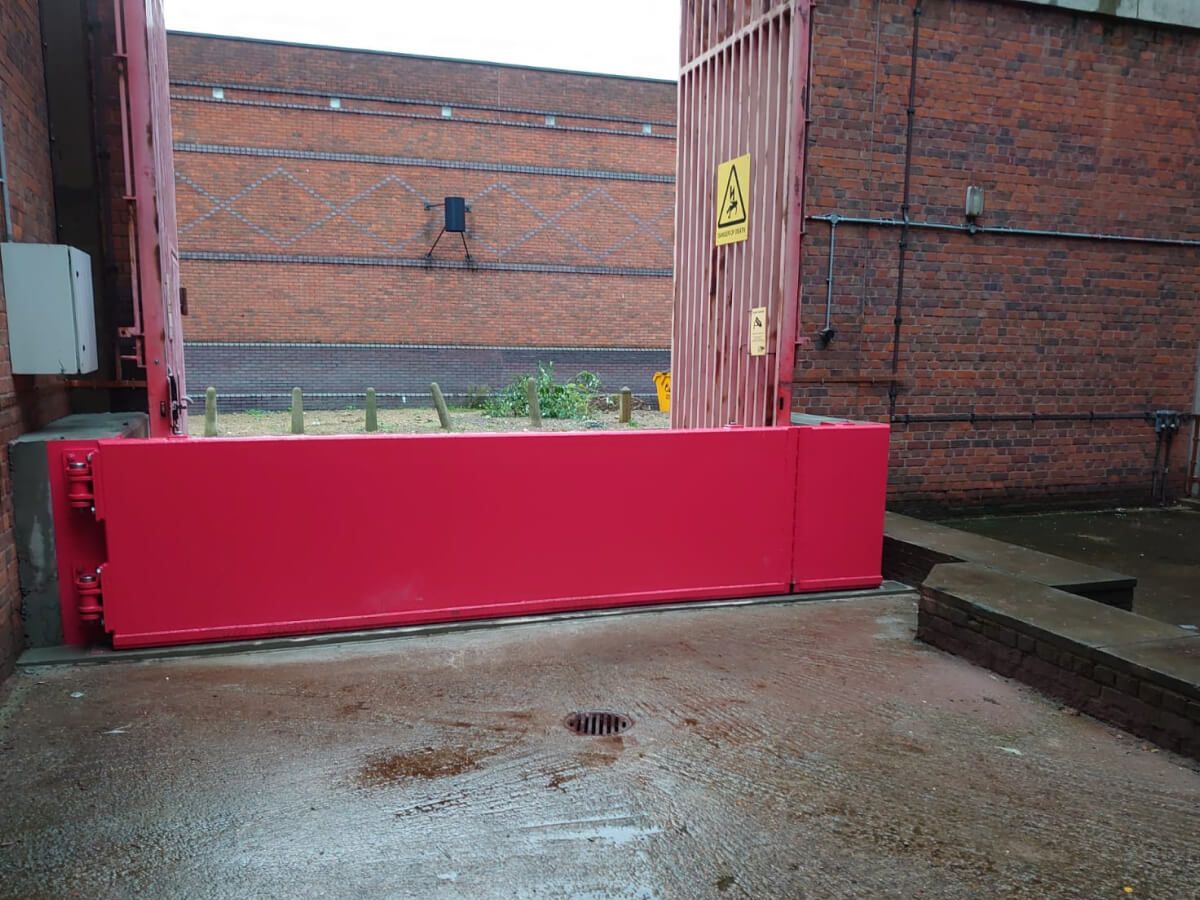

Red flood gate closed between brick walls, with barred security gates above it

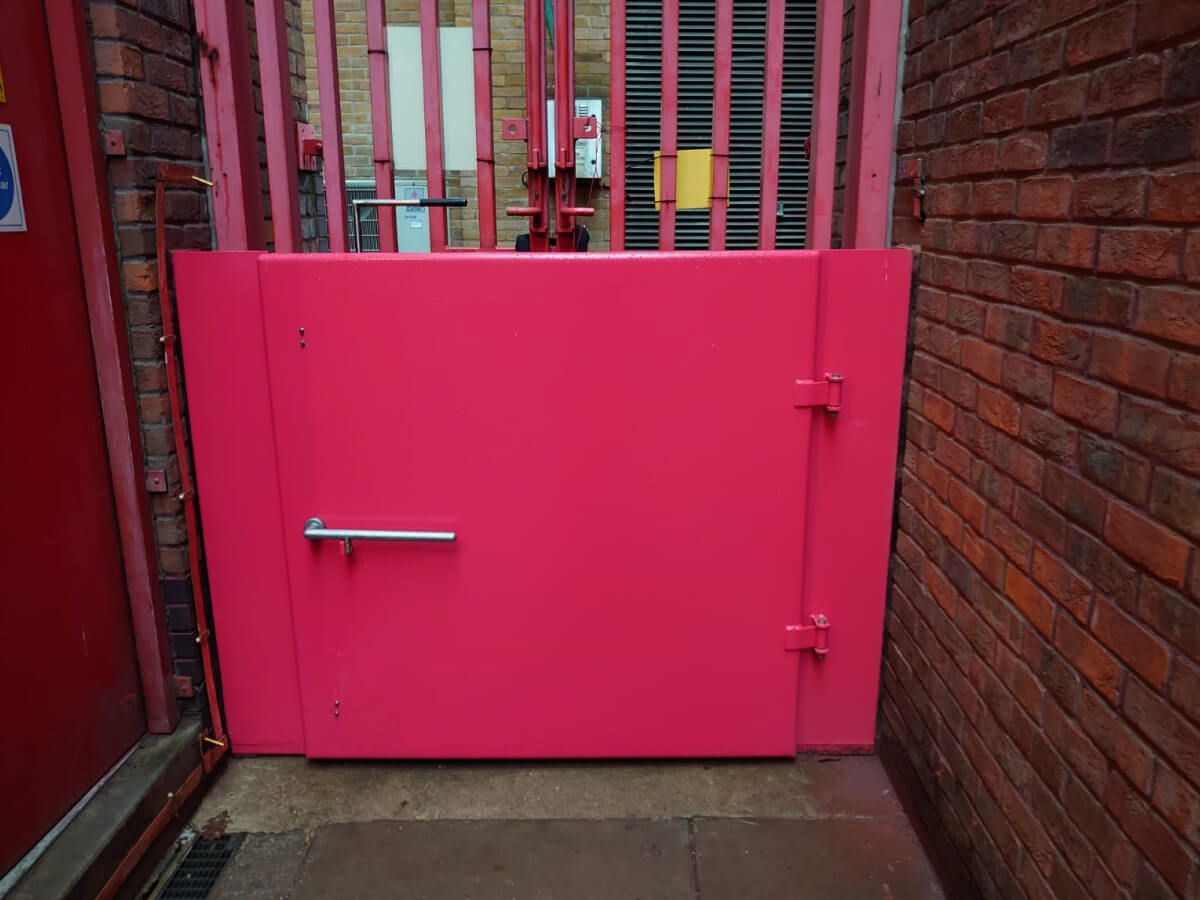

Pink steel flood door with handle and hinges fitted in a narrow brick alcove

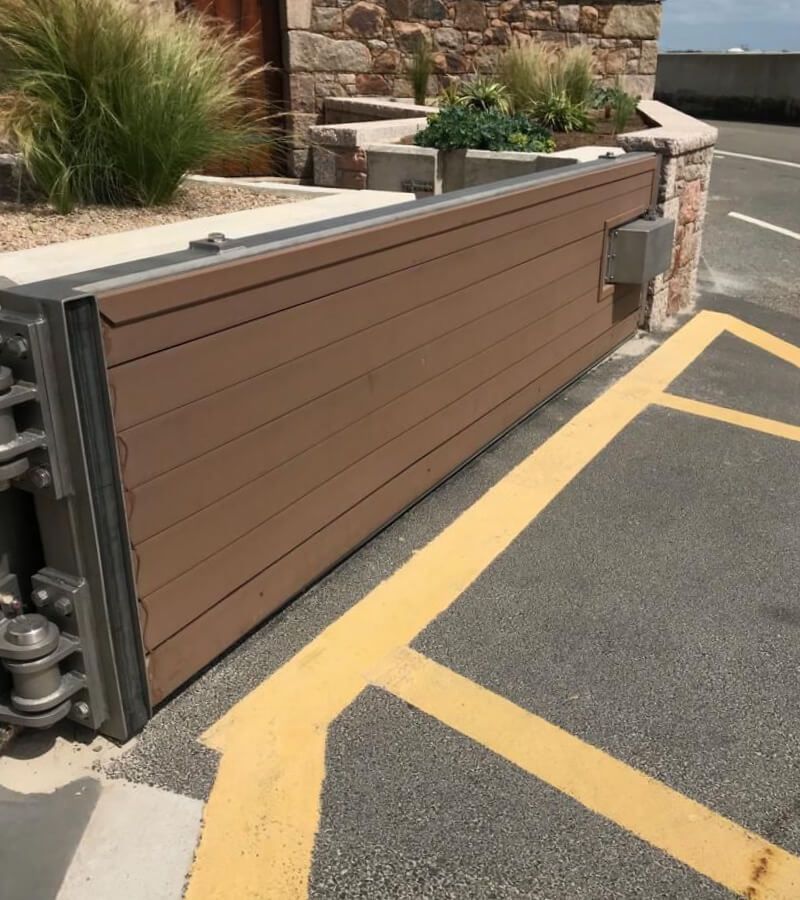

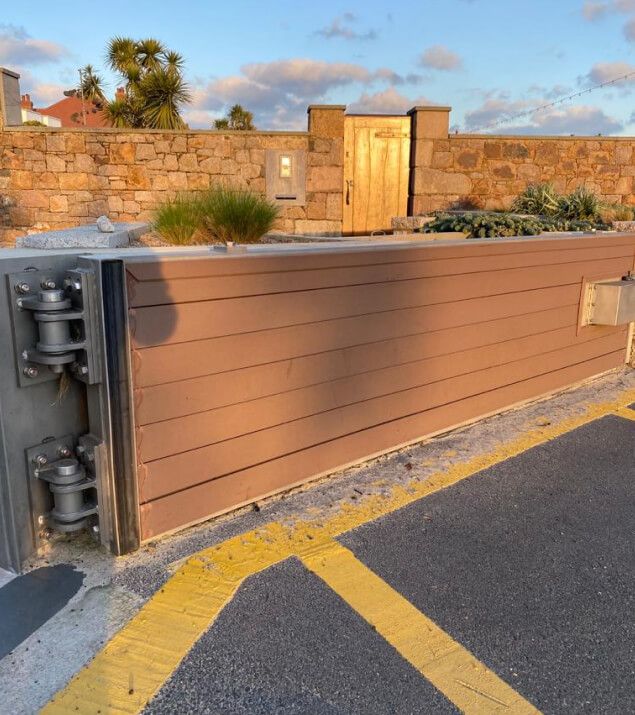

Brown timber-clad flood gate with steel frame across a car park entrance beside yellow lines

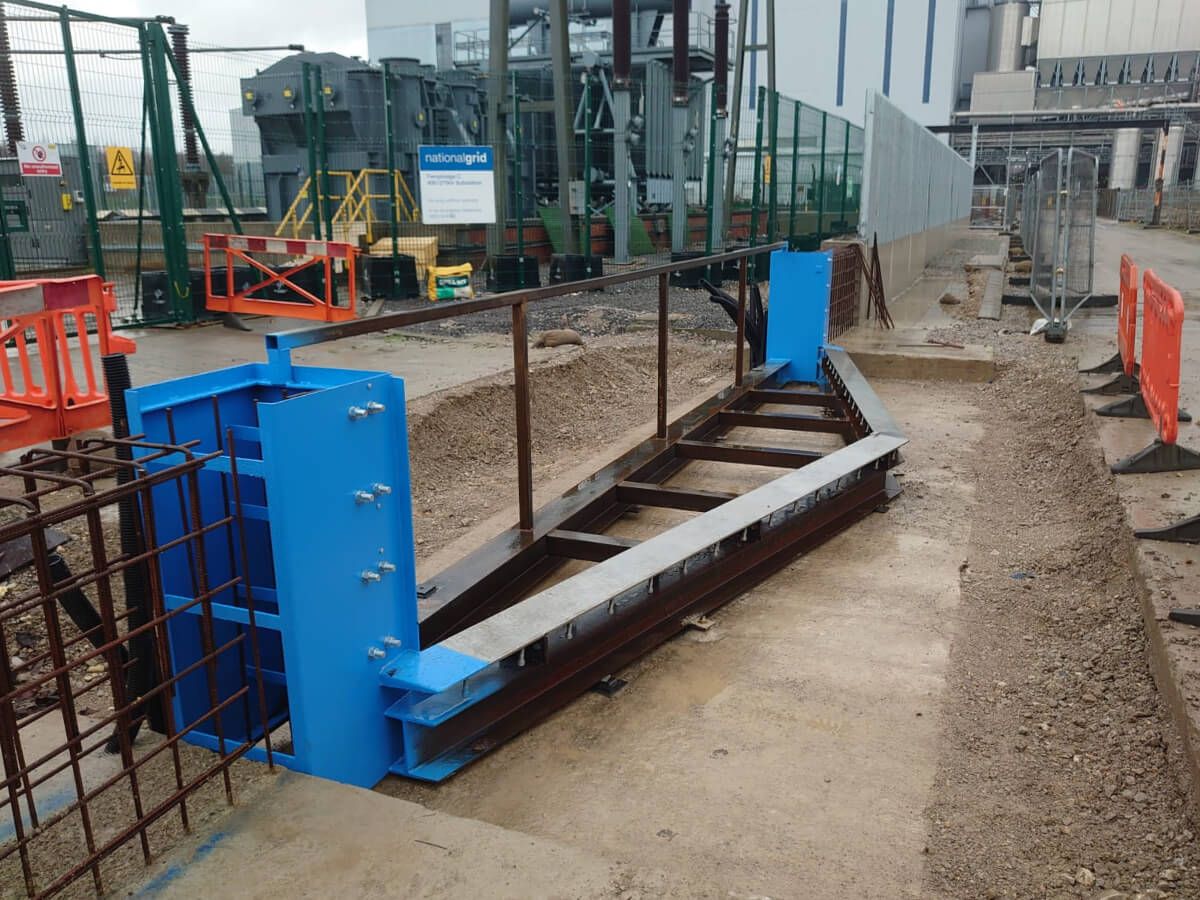

Blue steel flood gate frame installed in a trench with reinforcement bars at a substation site

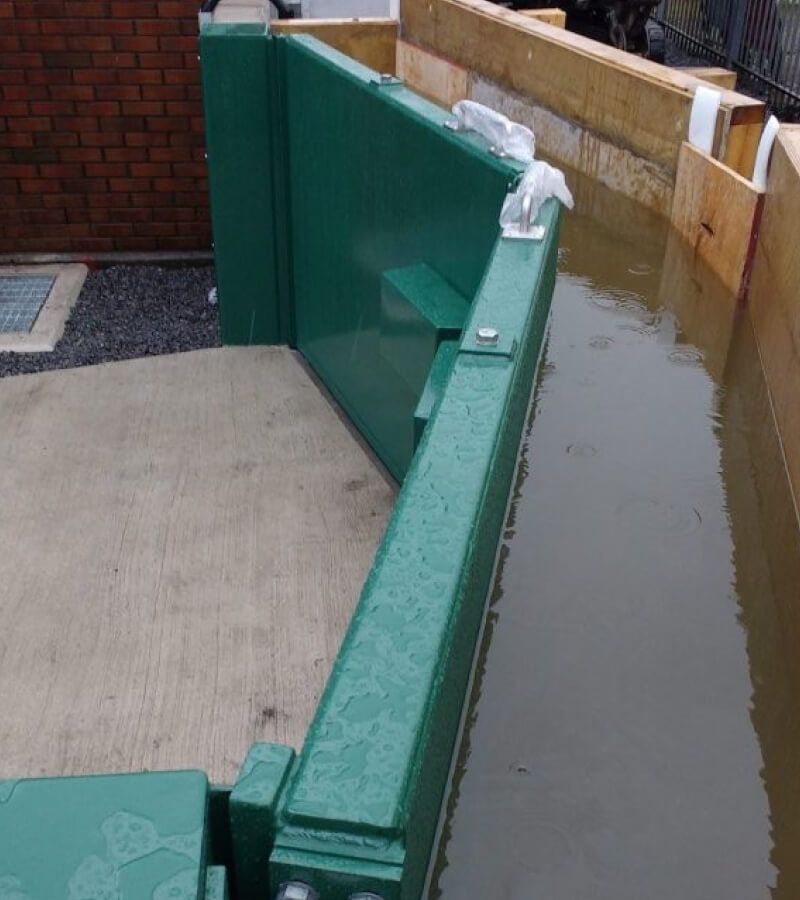

Green flood gate holding back brown floodwater in a timber test tank

Related Services

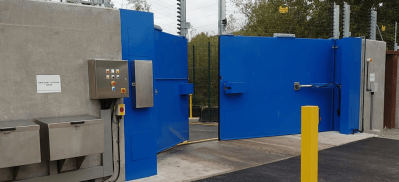

Blue double flood gate beside a control panel and cabinets at a secure site entrance

Hydraulic Flood Gates

Electrically operated flood defence to protect your perimeter. Designed to be operated by just one individual, our electrically operated hydraulic flood gates offer rapidly deployable flood defence to your property.

Find out more about Hydraulic Flood Gates

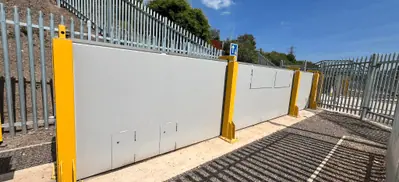

Grey flood gate panels with yellow support posts running beside palisade security fencing

Sliding Flood Gates

Designed to protect large openings where conventional swing or lift gates aren’t practical, our sliding flood gates provide robust, reliable perimeter flood defence for critical infrastructure and coastal environments. See a 9 m sliding gate on the Stephenson Street flood scheme.

Find out more about Sliding Flood Gates
Engineers reviewing an AutoCAD drawing on a monitor in the MM Engineering design office

DESIGN AND CONSULTATION

Defending against a flood requires a feat of engineering. Many say they can do it. Few actually can. We make bold claims about our products and back them up with a testing regime unrivalled on the market. Our products work. And we prove it. Every product we make is unique. Designed around your needs and backed by independent design calculations. We don’t design to sell. We design to defend.

Find out more about Flood Risk Design and Consultation

Latest

View all
HMRC Shipley

Case Studies

HMRC Shipley

MM Engineering were commissioned to create, advise and install flood defence products for HMRC Shipley at their riverside location.

READ MORE about HMRC Shipley
Hessle Foreshore Tidal Defence Scheme

Case Studies

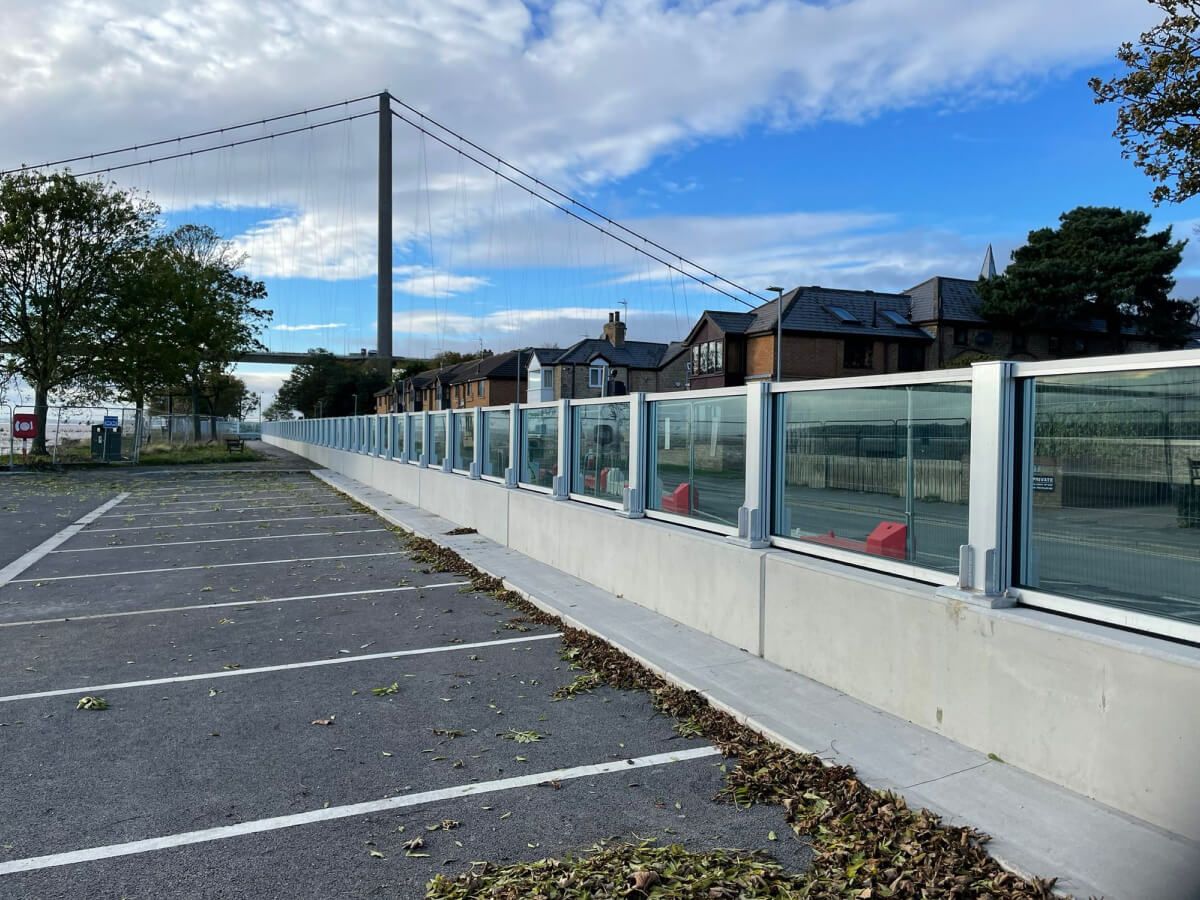

Hessle Foreshore Tidal Defence Scheme
